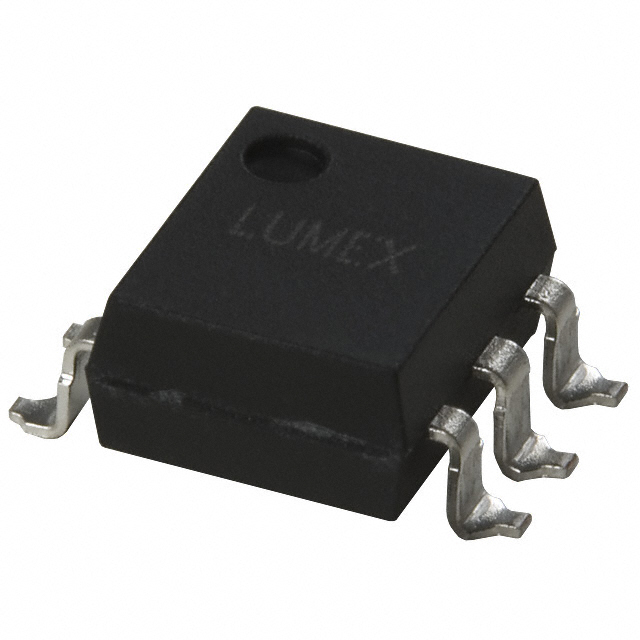

OCP-PCP116-TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OCP-PCP116-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy OCP-PCP116-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | OCP-PCP116-TR |
|---|---|
| Manufacturer | Lumex, Inc. |
| Description | OPTOISO 5KV OPEN COLLECTOR 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | OCP-PCP116-TR | Manufacturer | Lumex, Inc. |
|---|---|---|---|
| Description | OPTOISO 5KV OPEN COLLECTOR 6SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5652 pcs | Data sheet | OCP-PCP116 ~ |
| Category | Isolators | Voltage - Supply | 4.5 V ~ 17 V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Supplier Device Package | 6-SMD | Series | - |
| Rise / Fall Time (Typ) | 100ns, 50ns | Propagation Delay tpLH / tpHL (Max) | 9µs, 15µs |
| Packaging | Tape & Reel (TR) | Package / Case | 6-SMD, Gull Wing |
| Output Type | Open Collector | Other Names | 67-1617-2 |
| Operating Temperature | -25°C ~ 85°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inputs - Side 1/Side 2 | 1/0 |
| Input Type | DC | Detailed Description | Logic Output Optoisolator Open Collector 5000Vrms 1 Channel 6-SMD |
| Data Rate | - | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 50mA | Common Mode Transient Immunity (Min) | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
