CM5022R800R-00

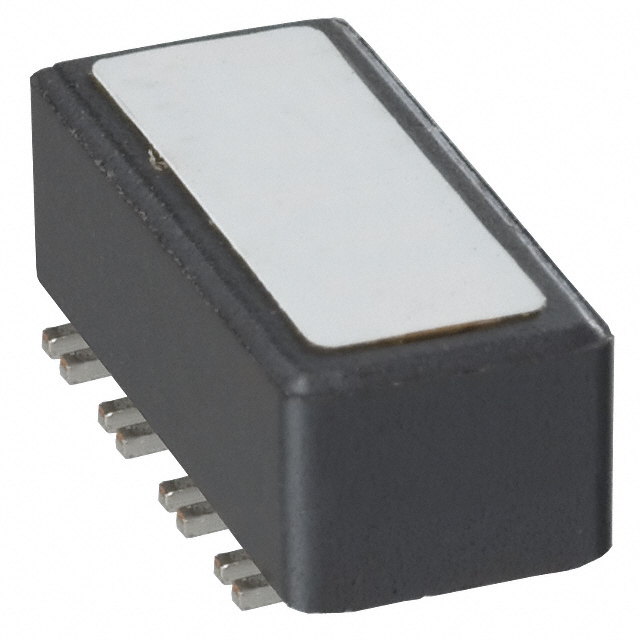

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CM5022R800R-00 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CM5022R800R-00 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CM5022R800R-00 |
|---|---|
| Manufacturer | Laird Technologies |
| Description | CMC 5A 8LN 80 OHM SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CM5022R800R-00 | Manufacturer | Laird Technologies |
|---|---|---|---|
| Description | CMC 5A 8LN 80 OHM SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4539 pcs | Data sheet | Part Number GuideEMI Filtering/RF Inductors CatalogCM5022R800R-00 |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.495" L x 0.265" W (12.57mm x 6.73mm) |
| Series | CM | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Vertical, 16 Flat Lead |
| Other Names | 240-2184-2 | Operating Temperature | -55°C ~ 125°C |
| Number of Lines | 8 | Mounting Type | Surface Mount |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Impedance @ Frequency | 80 Ohms @ 100MHz |
| Height (Max) | 0.197" (5.00mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 8 Line Common Mode Choke Surface Mount 80 Ohms @ 100MHz 5A DCR 20 mOhm |
| DC Resistance (DCR) (Max) | 20 mOhm | Current Rating (Max) | 5A |
| Approvals | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
