R6076MNZ1C9

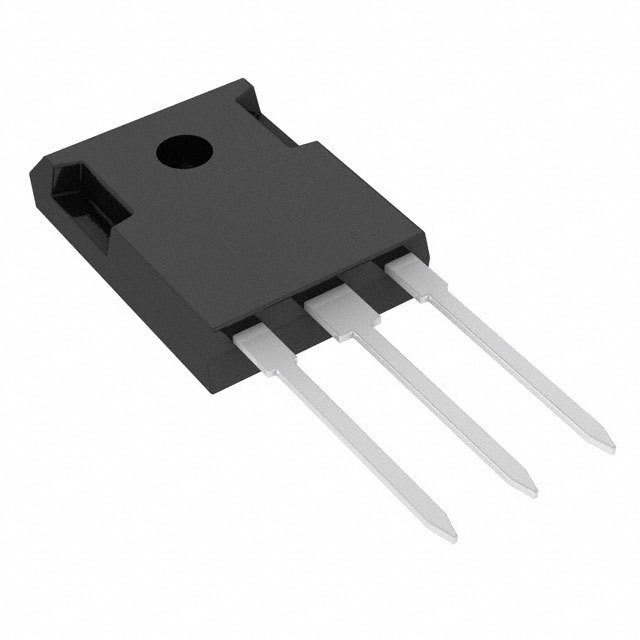

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy R6076MNZ1C9 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy R6076MNZ1C9 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | R6076MNZ1C9 |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | MOSFET N-CHANNEL 600V 76A TO247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $6.488 | $5.899 | $5.014 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | R6076MNZ1C9 | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CHANNEL 600V 76A TO247 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6333 pcs | Data sheet | R6076MNZ1 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 5V @ 1mA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-247 | Series | - |
| Rds On (Max) @ Id, Vgs | 55 mOhm @ 38A, 10V | Power Dissipation (Max) | 740W (Tc) |
| Package / Case | TO-247-3 | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 7000pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 115nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 600V |
| Detailed Description | N-Channel 600V 76A (Tc) 740W (Tc) Through Hole TO-247 | Current - Continuous Drain (Id) @ 25°C | 76A (Tc) |
