HP8S36TB

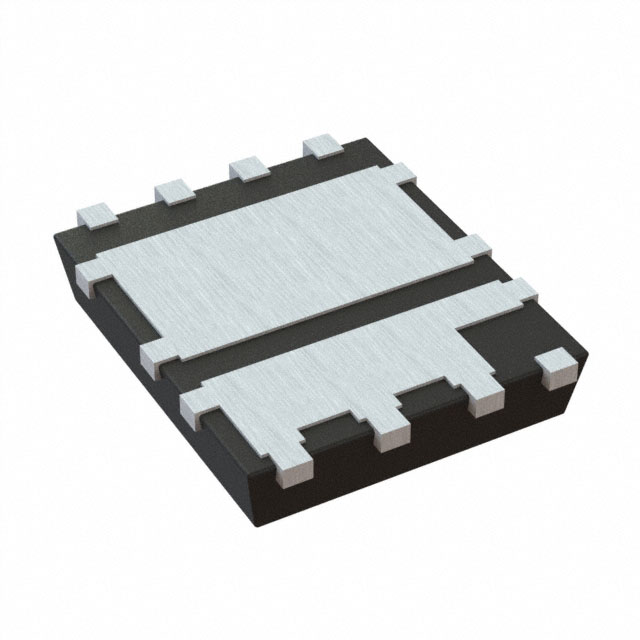

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HP8S36TB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HP8S36TB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HP8S36TB |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | 30V NCH+NCH MIDDLE POWER MOSFET, |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.538 | $0.477 | $0.377 | $0.292 | $0.231 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | HP8S36TB | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | 30V NCH+NCH MIDDLE POWER MOSFET, | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86255 pcs | Data sheet | HP8S36HSMT8 TB Taping Spec |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Supplier Device Package | 8-HSOP | Series | - |
| Rds On (Max) @ Id, Vgs | 2.4 mOhm @ 32A, 10V | Power - Max | 29W |
| Packaging | Original-Reel® | Package / Case | 8-PowerTDFN |
| Other Names | HP8S36TBDKR | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 40 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 6100pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 47nC @ 4.5V |
| FET Type | 2 N-Channel (Half Bridge) | FET Feature | - |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | Mosfet Array 2 N-Channel (Half Bridge) 30V 27A, 80A 29W Surface Mount 8-HSOP |
| Current - Continuous Drain (Id) @ 25°C | 27A, 80A |
