Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > BD9109FVM-EVK-101

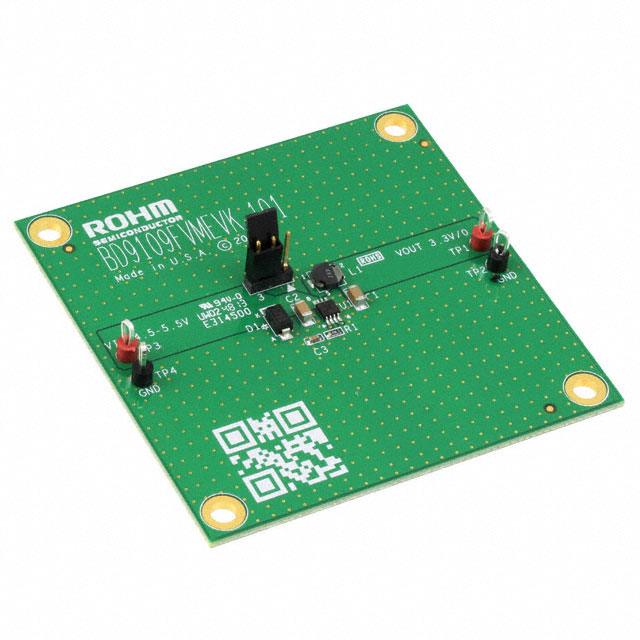

BD9109FVM-EVK-101

BD9109FVM-EVK-101

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BD9109FVM-EVK-101 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BD9109FVM-EVK-101
Manufacturer	LAPIS Semiconductor
Description	BOARD EVAL BD9109FVM REG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2477 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$15.643

Product parameter
Data sheet

Product parameter

Part Number	BD9109FVM-EVK-101	Manufacturer	LAPIS Semiconductor
Description	BOARD EVAL BD9109FVM REG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2477 pcs	Data sheet	BD9109FVM-EVK-101
Category	Development Boards, Kits, Programmers	Voltage - Output	3.3V
Voltage - Input	4.5 V ~ 5.5 V	Utilized IC / Part	BD9109
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	1MHz	Detailed Description	BD9109 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	800mA	Board Type	Fully Populated
