976

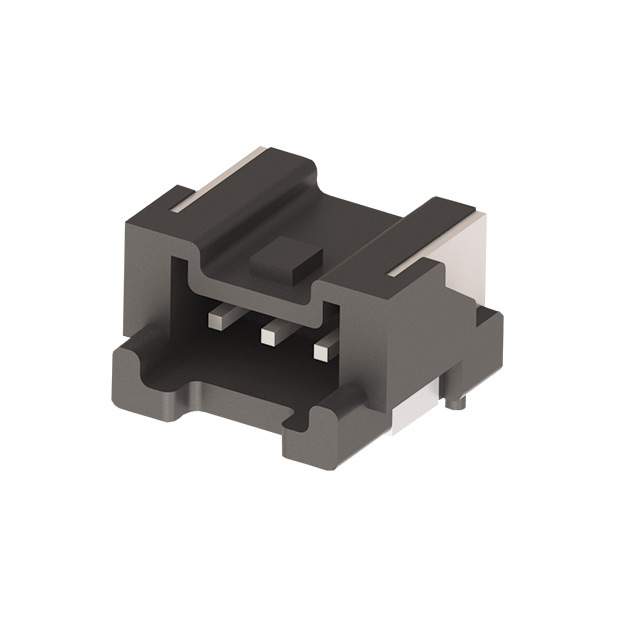

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 976 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 976 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 976 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | HORIZONTAL MOUNT WIRE TO BOARD C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.896 | $0.814 | $0.764 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.731 | $0.698 | $0.631 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 976 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | HORIZONTAL MOUNT WIRE TO BOARD C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52048 pcs | Data sheet | 976 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | 36-976CT | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.224" (5.69mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Surface Mount, Right Angle 3 position 0.079" (2.00mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
