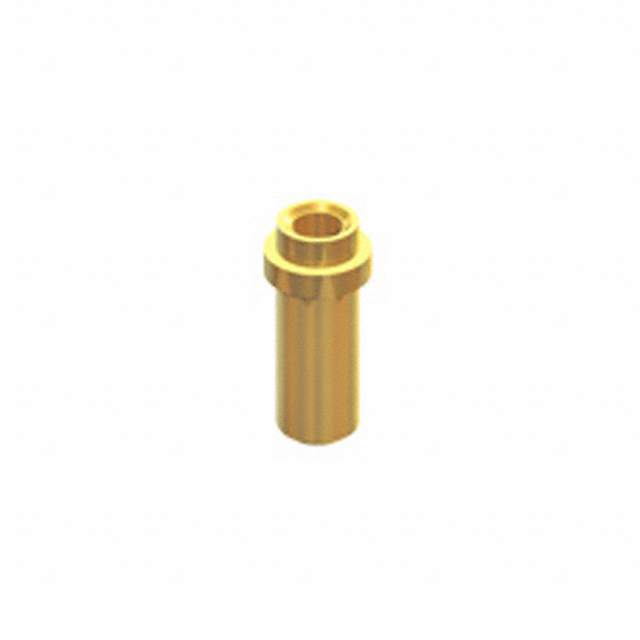

1689
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1689 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1689 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1689 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN PIN RCPT .065-.082 SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.686 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1689 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PIN RCPT .065-.082 SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 50747 pcs | Data sheet | 1689 DrawingMicro Jacks |
| Category | Connectors, Interconnects | Termination | Solder |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.340" (8.64mm) | Series | - |
| Pin Hole Diameter | - | Packaging | Bulk |
| Other Names | 1689K 1689K-ND 36-1689 |
Operating Temperature | - |
| Mounting Hole Diameter | 0.146" (3.71mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.412" (10.46mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant | Insertion Force | - |
| Flange Diameter | 0.187" (4.75mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.065" ~ 0.082" (1.65mm ~ 2.08mm) No Tail Solder | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.065" ~ 0.082" (1.65mm ~ 2.08mm) |
