1438

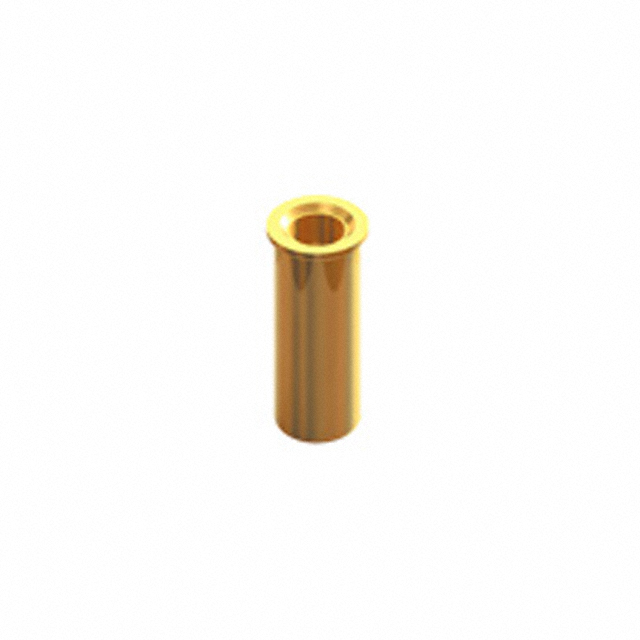

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1438 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1438 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1438 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN PIN RCPT .040-.050 SOLDER |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.28 | $0.211 | $0.169 | $0.162 | ||
| 250 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.148 | $0.119 | $0.106 | $0.102 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1438 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PIN RCPT .040-.050 SOLDER | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 189209 pcs | Data sheet | Micro Jacks1438 Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.260" (6.60mm) | Series | - |
| Pin Hole Diameter | - | Packaging | Bulk |
| Other Names | 1438K 1438K-ND 36-1438 KEY1107 KEY1107-ND |
Operating Temperature | - |
| Mounting Hole Diameter | 0.104" (2.64mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.290" (7.37mm) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insertion Force | - |
| Flange Diameter | 0.118" (3.00mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.040" ~ 0.050" (1.02mm ~ 1.27mm) No Tail Solder | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 200.0µin (5.08µm) | Contact Finish | Tin-Lead |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.040" ~ 0.050" (1.02mm ~ 1.27mm) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
