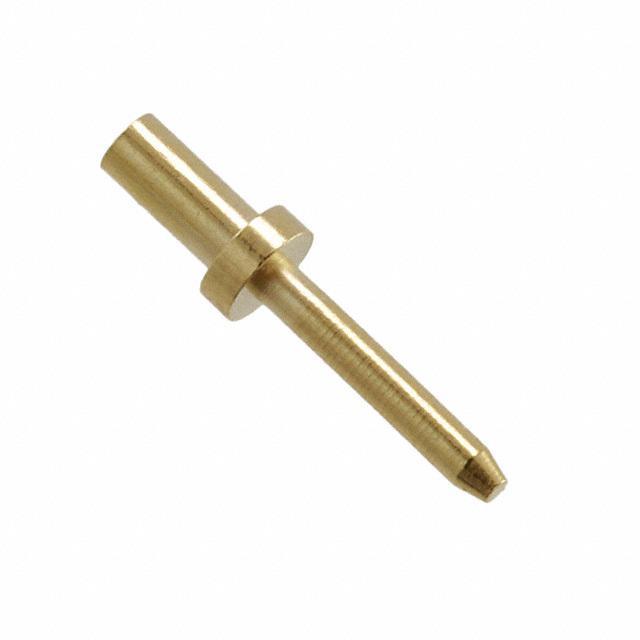

1402-3


OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1402-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1402-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 1402-3 |
---|---|
Manufacturer | Keystone Electronics Corp. |
Description | CONN PC PIN CIRC 0.040DIA GOLD |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
---|---|---|---|---|---|
$0.193 | $0.144 | $0.115 | $0.111 | ||
250 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
$0.101 | $0.081 | $0.072 | $0.07 |
- Product parameter
- Data sheet
Product parameter
Part Number | 1402-3 | Manufacturer | Keystone Electronics Corp. |
---|---|---|---|
Description | CONN PC PIN CIRC 0.040DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 280073 pcs | Data sheet | 1402-3 DrawingMicro Pins |
Category | Connectors, Interconnects | Termination | Swage |
Terminal Type | PC Pin | Terminal Style | Single End |
Series | - | Pin Size - Below Flange | - |
Pin Size - Above Flange | 0.040" (1.02mm) Dia | Packaging | Bulk |
Other Names | 1402-3K 1402-3K-ND 14023 36-1402-3 |
Mounting Type | Through Hole |
Mounting Hole Diameter | 0.062" (1.57mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material - Insulation | - | Manufacturer Standard Lead Time | 6 Weeks |
Length - Overall | 0.395" (10.03mm) | Length - Below Flange | 0.125" (3.18mm) |
Length - Above Flange | 0.240" (6.10mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Color | - | Insulation | Non-Insulated |
Flange Diameter | 0.093" (2.36mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.040" (1.02mm) Dia |
Contact Material | Brass | Contact Finish Thickness | 10.0µin (0.25µm) |
Contact Finish | Gold | Board Thickness | 0.093" (2.36mm) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
