1378-1

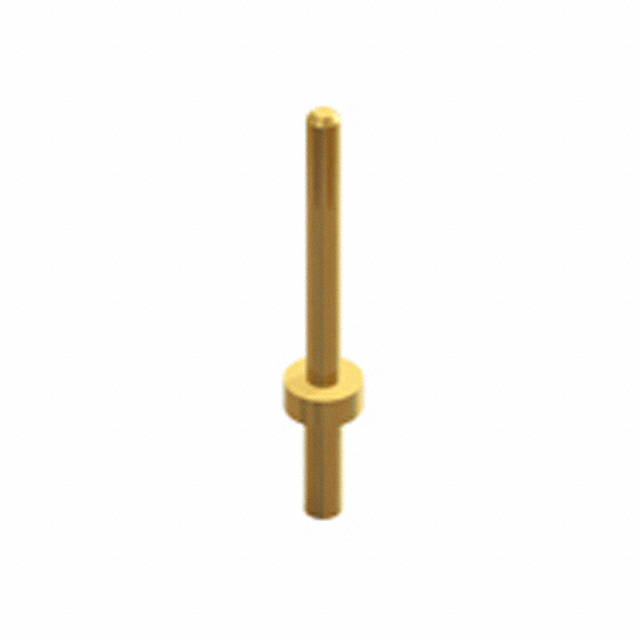

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1378-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1378-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1378-1 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN PC PIN CIRC 0.017DIA GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.064 | $0.06 | $0.045 | $0.041 | ||
| 250 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.037 | $0.029 | $0.026 | $0.026 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1378-1 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.017DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 944953 pcs | Data sheet | 1378-1 DrawingMicro Pins |
| Category | Connectors, Interconnects | Termination | Solder |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | - | Pin Size - Below Flange | 0.019" (0.48mm) Dia |
| Pin Size - Above Flange | 0.017" (0.43mm) Dia | Packaging | Bulk |
| Other Names | 1378-1-ND 36-1378-1 Q3788956 |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.022" (0.56mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 6 Weeks |
| Length - Overall | 0.234" (5.94mm) | Length - Below Flange | 0.061" (1.55mm) |
| Length - Above Flange | 0.157" (3.99mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.039" (0.99mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.017" (0.43mm) Dia |
| Contact Material | Brass | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | 0.032" (0.81mm) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
