Home > Products > Capacitors > Aluminum Electrolytic Capacitors > PEH534VCD3220M2

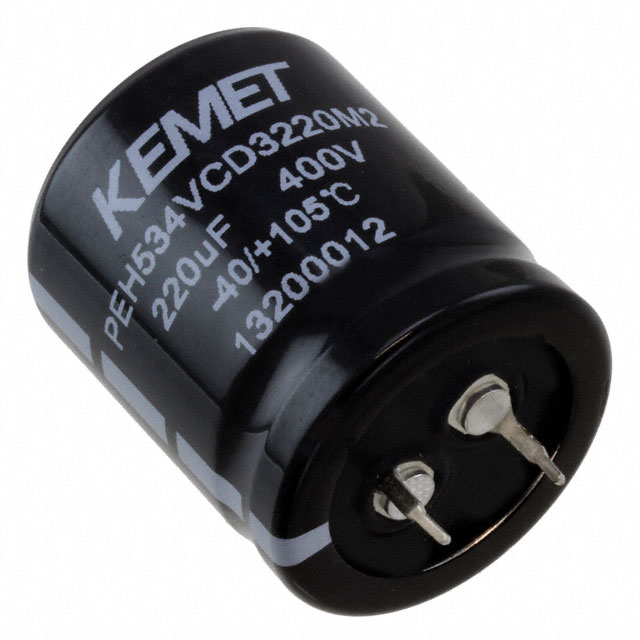

PEH534VCD3220M2

PEH534VCD3220M2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PEH534VCD3220M2 with confidence from Components-World.HK, 1 Year Warranty

Dowload PEH534VCD3220M2 Details in PDF

Request a Quote

Part Number	PEH534VCD3220M2
Manufacturer	KEMET
Description	CAP ALUM 220UF 20% 400V SNAP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 27837 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$2.469	$2.193	$1.755	$1.508	$1.421

Product parameter
Data sheet

Product parameter

Part Number	PEH534VCD3220M2	Manufacturer	KEMET
Description	CAP ALUM 220UF 20% 400V SNAP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27837 pcs	Data sheet	PEH534 Series
Category	Capacitors	Voltage - Rated	400V
Tolerance	±20%	Surface Mount Land Size	-
Size / Dimension	1.181" Dia (30.00mm)	Series	PEH534
Ripple Current @ Low Frequency	1A @ 100Hz	Ratings	-
Polarization	Polar	Packaging	Bulk
Package / Case	Radial, Can - Snap-In	Other Names	399-5686 A561DE221M400A
Operating Temperature	-40°C ~ 105°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	20 Weeks
Lifetime @ Temp.	2000 Hrs @ 105°C	Lead Spacing	0.394" (10.00mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	1.378" (35.00mm)
ESR (Equivalent Series Resistance)	460 mOhm @ 100Hz	Detailed Description	220µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 460 mOhm @ 100Hz 2000 Hrs @ 105°C
Capacitance	220µF	Applications	General Purpose
