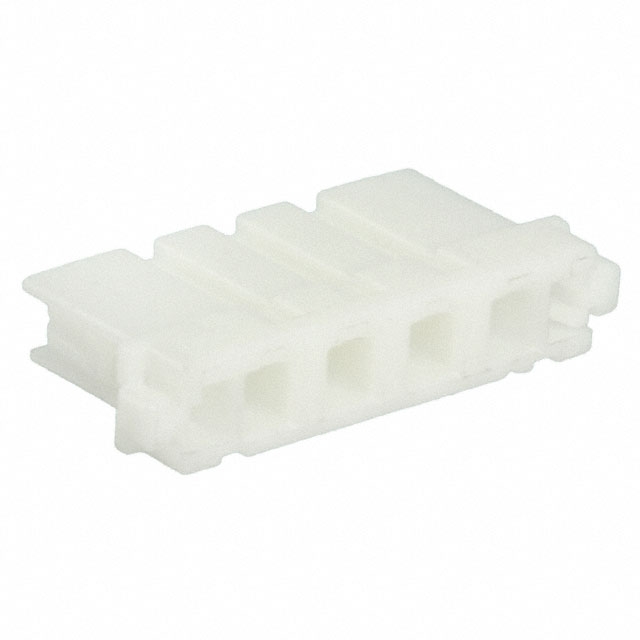

LEXR-04V-S(HF)
![LEXR-04V-S(HF)](/thumb/medium/c8/LEXR-04V-S%28HF%29.jpg)
![](/upfile/linecard/medium_JST.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LEXR-04V-S(HF) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LEXR-04V-S(HF) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | LEXR-04V-S(HF) |
---|---|
Manufacturer | JST |
Description | CONN SSL RCPT HSG 4POS CRIMP |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
---|---|---|---|---|---|
$0.096 | $0.091 | $0.078 | $0.066 | $0.064 | |
250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
$0.057 | $0.055 | $0.046 | $0.042 |
- Product parameter
- Data sheet
Product parameter
Part Number | LEXR-04V-S(HF) | Manufacturer | JST |
---|---|---|---|
Description | CONN SSL RCPT HSG 4POS CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 471296 pcs | Data sheet | LEX Connector Datasheet |
Category | Connectors, Interconnects | Wire Gauge | - |
Voltage Rating | 300V | Termination | Crimp |
Style | Board to Cable/Wire | Series | LEX |
Pitch | 0.098" (2.50mm) | Packaging | Bulk |
Other Names | 455-2912 LEXR04VSHF |
Operating Temperature | -55°C ~ 105°C |
Number of Positions | 4 | Mounting Type | Free Hanging (In-Line) |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
Manufacturer Standard Lead Time | 24 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Ingress Protection | - | Housing Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
Housing Color | Natural | Features | - |
Fastening Type | - | Detailed Description | SSL Connector 4 Position Receptacle Housing for Socket Contact Board to Cable/Wire 0.098" (2.50mm) Crimp |
Current Rating | 3A (22 AWG) | Contact Material | - |
Contact Finish | - | Connector Type | Receptacle Housing for Socket Contact |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
