BM05B-GHS-TBT(LF)(SN)(N)

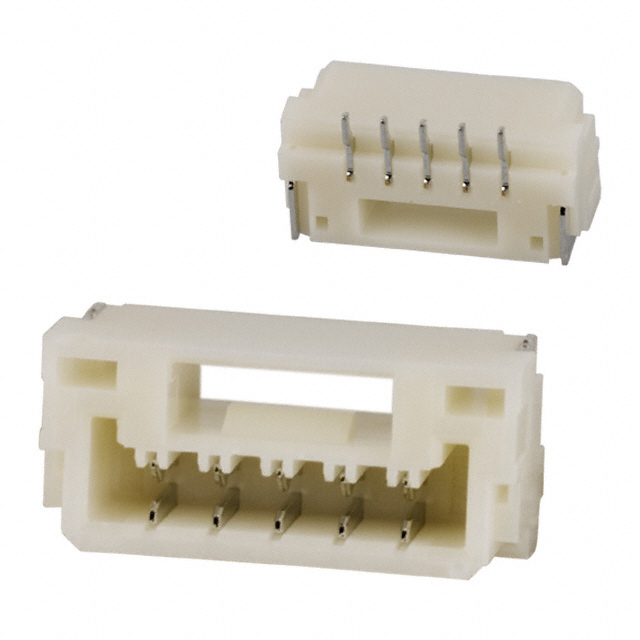

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BM05B-GHS-TBT(LF)(SN)(N) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BM05B-GHS-TBT(LF)(SN)(N) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BM05B-GHS-TBT(LF)(SN)(N) |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADER GH TOP 5POS 1.25MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | 5000 pcs | 12500 pcs | 25000 pcs | |
|---|---|---|---|---|---|
| $0.075 | $0.071 | $0.063 | $0.063 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | BM05B-GHS-TBT(LF)(SN)(N) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER GH TOP 5POS 1.25MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 361179 pcs | Data sheet | GH Connectors |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | GH |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 455-1581-2 BM05B-GHS-TBT(LF)(SN) BM05B-GHS-TBT(LF)(SN)(N)- BM05B-GHS-TBT(LF)(SN)(N);- BM05BGHSTBTLFSNN |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 7.3mm | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA9T), Nylon 9T |
| Insulation Height | 0.159" (4.05mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Pick and Place, Solder Retention |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Surface Mount 5 position 0.049" (1.25mm) |
| Current Rating | 1A | Contact Type | Outer Shroud Contact |
| Contact Shape | Rectangular | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
