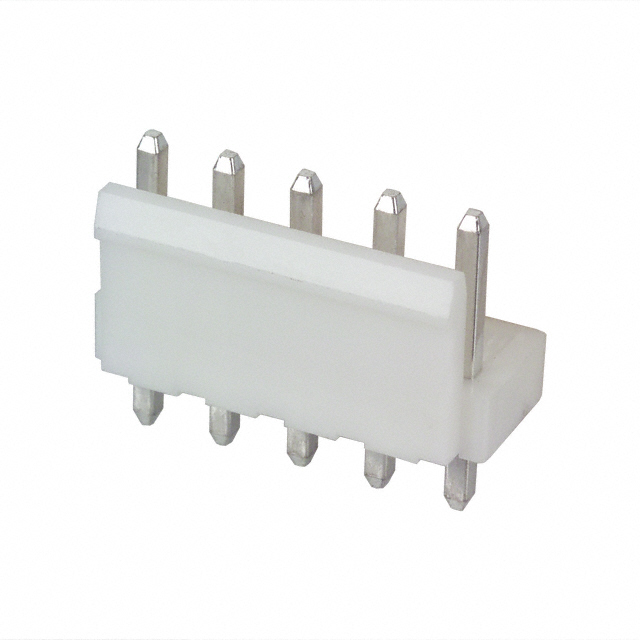

B5P-VH(LF)(SN)
![B5P-VH(LF)(SN)](/thumb/medium/0a/B5P-VH%28LF%29%28SN%29.jpg)
![](/upfile/linecard/medium_JST.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B5P-VH(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B5P-VH(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | B5P-VH(LF)(SN) |
---|---|
Manufacturer | JST |
Description | CONN HEADER VH TOP 5POS 3.96MM |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
---|---|---|---|---|---|
$0.124 | $0.119 | $0.083 | $0.071 | ||
1000 pcs | 5000 pcs | 10000 pcs | |||
$0.059 | $0.051 | $0.047 |
- Product parameter
- Data sheet
Product parameter
Part Number | B5P-VH(LF)(SN) | Manufacturer | JST |
---|---|---|---|
Description | CONN HEADER VH TOP 5POS 3.96MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 436977 pcs | Data sheet | VH Series Datasheet |
Category | Connectors, Interconnects | Voltage Rating | 250V |
Termination | Solder | Style | Board to Cable/Wire |
Shrouding | Shrouded - 1 Wall | Series | VH |
Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
Packaging | Bulk | Overall Contact Length | 0.575" (14.60mm) |
Other Names | (W)B5P-VH(LF)(SN) 455-1642 B5PVHLFSN |
Operating Temperature | -25°C ~ 85°C |
Number of Rows | 1 | Number of Positions Loaded | All |
Number of Positions | 5 | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | 16.5mm | Manufacturer Standard Lead Time | 24 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
Insulation Height | 0.370" (9.40mm) | Insulation Color | Natural |
Ingress Protection | - | Features | - |
Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 5 position 0.156" (3.96mm) |
Current Rating | 10A | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Brass |
Contact Length - Post | 0.146" (3.70mm) | Contact Length - Mating | 0.303" (7.70mm) |
Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
Connector Type | Header | Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
