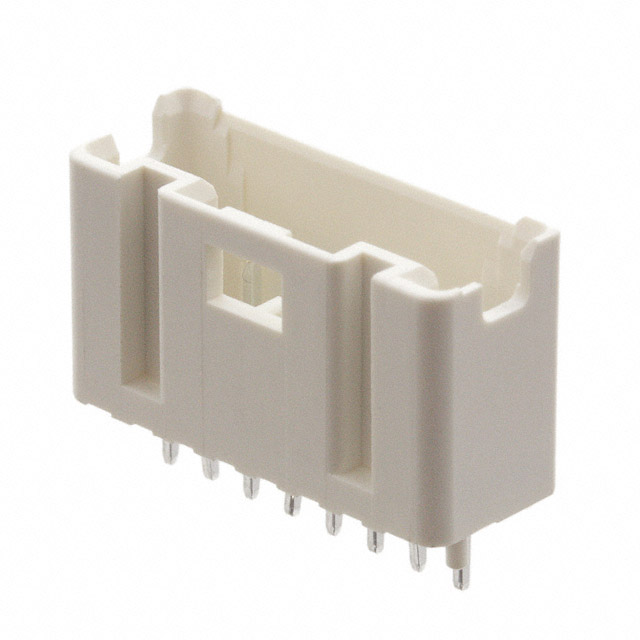

B08B-PNISK-1A(LF)(SN)(F)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B08B-PNISK-1A(LF)(SN)(F) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B08B-PNISK-1A(LF)(SN)(F) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | B08B-PNISK-1A(LF)(SN)(F) |
---|---|
Manufacturer | JST |
Description | CONN HEADER 8 POS T/H 2.0MM |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 250 pcs | 500 pcs | |
---|---|---|---|---|---|
$0.255 | $0.238 | $0.167 | $0.159 | ||
1000 pcs | 5000 pcs | 10000 pcs | |||
$0.131 | $0.115 | $0.107 |
- Product parameter
- Data sheet
Product parameter
Part Number | B08B-PNISK-1A(LF)(SN)(F) | Manufacturer | JST |
---|---|---|---|
Description | CONN HEADER 8 POS T/H 2.0MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 212540 pcs | Data sheet | PNI Connector Datasheet |
Category | Connectors, Interconnects | Voltage Rating | 100V |
Termination | Press-Fit, Solder | Style | Board to Cable/Wire |
Shrouding | Shrouded - 4 Wall | Series | PNI |
Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
Packaging | Bulk | Overall Contact Length | - |
Other Names | 455-2740 B08B-PNISK-1A (LF)(SN) (F) B08BPNISK1ALFSNF |
Operating Temperature | -25°C ~ 85°C |
Number of Rows | 1 | Number of Positions Loaded | All |
Number of Positions | 8 | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | 12.25mm | Manufacturer Standard Lead Time | 24 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
Insulation Height | 0.402" (10.20mm) | Insulation Color | Natural |
Ingress Protection | - | Features | Board Guide |
Fastening Type | Latch Lock | Detailed Description | Connector Header Through Hole 8 position 0.079" (2.00mm) |
Current Rating | 3A | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Copper Alloy |
Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | - |
Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
Connector Type | Header | Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
