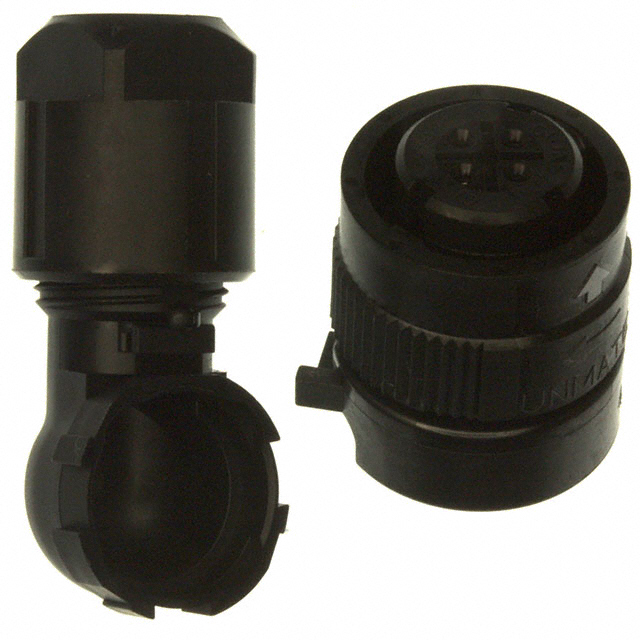

JN1FS04FK2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JN1FS04FK2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JN1FS04FK2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JN1FS04FK2 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN PLUG FMALE 4POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.904 | $5.483 | $4.92 | $4.78 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.217 | $3.936 | $3.852 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | JN1FS04FK2 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN PLUG FMALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8436 pcs | Data sheet | Circular ConnectorsJN1 Series DatasheetJN1FS04FKyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200VAC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | S |
| Shell Material | Synthetic Resin | Shell Finish | - |
| Series | JN1 | Packaging | Tray |
| Other Names | 670-1063 | Orientation | N (Normal) |
| Operating Temperature | -20°C ~ 125°C | Number of Positions | 4 (3 + PE) |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Resin | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Backshell, Coupling Nut, Rotatable | Fastening Type | Push-Twist |
| Detailed Description | 4 (3 + PE) Position Circular Connector Plug, Female Sockets Solder Cup Silver | Current Rating | 5A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Plug, Female Sockets |
| Color | Black | Cable Opening | 0.256" ~ 0.315" (6.50mm ~ 8.00mm) |
| Backshell Material, Plating | Synthetic Resin | Applications | - |
