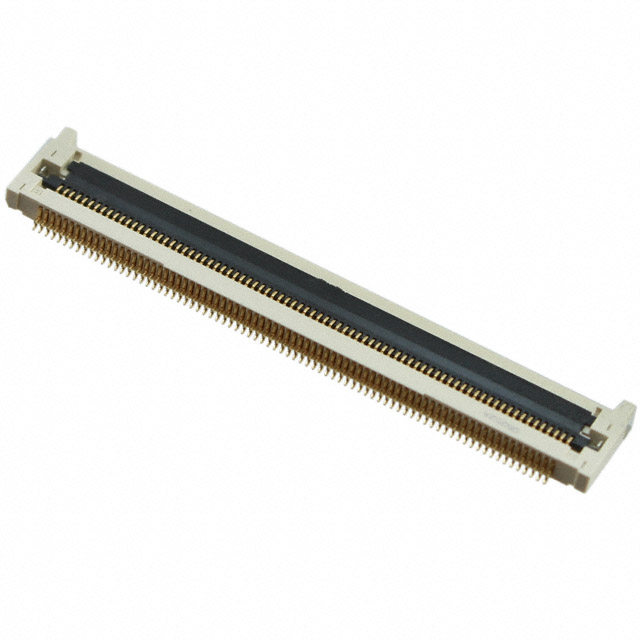

FF0380SA1


OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FF0380SA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FF0380SA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | FF0380SA1 |
---|---|
Manufacturer | JAE Electronics, Inc. |
Description | CONN FPC BOTTOM 80POS 0.50MM R/A |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
---|---|---|---|---|---|
$3.486 | $3.335 | $3.032 | $2.88 | ||
100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
$2.804 | $2.501 | $2.349 | $2.077 |
- Product parameter
- Data sheet
Product parameter
Part Number | FF0380SA1 | Manufacturer | JAE Electronics, Inc. |
---|---|---|---|
Description | CONN FPC BOTTOM 80POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 18957 pcs | Data sheet | FF03 Series DatasheetFF03xxSA1 DrawingBoard-to-Flex Connectors |
Category | Connectors, Interconnects | Voltage Rating | 50V |
Termination | Solder | Series | FF03 |
Pitch | 0.020" (0.50mm) | Packaging | Strip |
Other Names | 670-2076 | Operating Temperature | -40°C ~ 85°C |
Number of Positions | 80 | Mounting Type | Surface Mount, Right Angle |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
Material Flammability Rating | - | Manufacturer Standard Lead Time | 14 Weeks |
Locking Feature | Rotary Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | White |
Height Above Board | 0.079" (2.00mm) | Flat Flex Type | FPC |
Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
Detailed Description | 80 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A per Contact |
Contact Material | Copper Alloy | Contact Finish Thickness | - |
Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
Cable End Type | Straight | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
Actuator Color | Black |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
