6N137

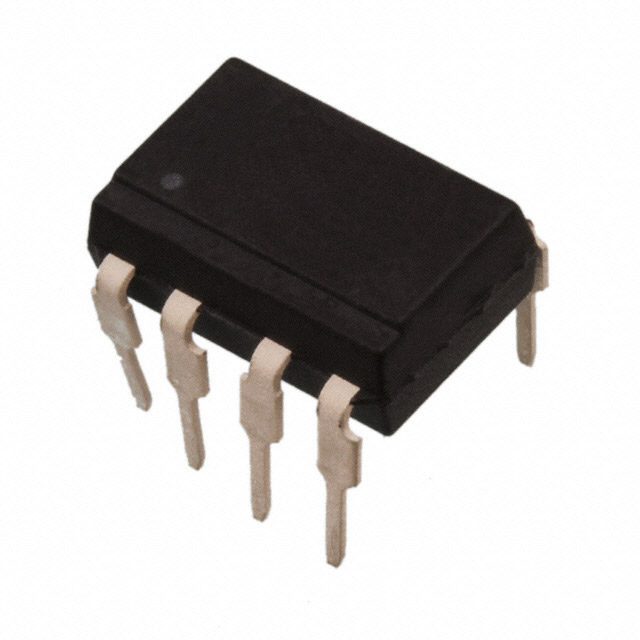

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 6N137 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 6N137 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 6N137 |
|---|---|
| Manufacturer | Isocom Components |
| Description | OPTOISO 5KV 1CH OPEN COLL 8DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.427 | $0.347 | $0.267 | $0.24 | $0.214 | |
| 800 pcs | 1600 pcs | 3200 pcs | 5600 pcs | ||
| $0.16 | $0.15 | $0.142 | $0.139 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 6N137 | Manufacturer | Isocom Components |
|---|---|---|---|
| Description | OPTOISO 5KV 1CH OPEN COLL 8DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 138884 pcs | Data sheet | 6N137, ICPL2601, ICPL2611 |
| Category | Isolators | Voltage - Supply | 7V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.4V |
| Supplier Device Package | 8-DIP | Series | - |
| Rise / Fall Time (Typ) | 40ns, 10ns | Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Packaging | Tube | Package / Case | 8-DIP (0.300", 7.62mm) |
| Output Type | Open Collector | Other Names | 6N137IS |
| Operating Temperature | -55°C ~ 85°C | Number of Channels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inputs - Side 1/Side 2 | 1/0 | Input Type | DC |
| Detailed Description | Logic Output Optoisolator 10Mbps Open Collector 5000Vrms 1 Channel 5kV/µs CMTI 8-DIP | Data Rate | 10Mbps |
| Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 50mA |
| Common Mode Transient Immunity (Min) | 5kV/µs |
