Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > ISL8022EVAL2Z

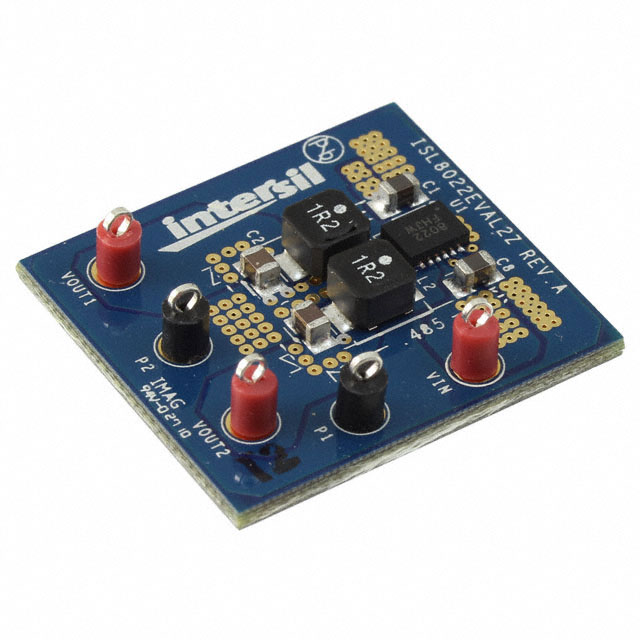

ISL8022EVAL2Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL8022EVAL2Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ISL8022EVAL2Z
Manufacturer	Intersil
Description	EVAL BOARD 2 FOR ISL8022
Lead Free Status / RoHS Status	Not applicable / Not applicable

~~In Stock~~ 2265 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$16.018

Product parameter
Data sheet

Product parameter

Part Number	ISL8022EVAL2Z	Manufacturer	Intersil
Description	EVAL BOARD 2 FOR ISL8022	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	2265 pcs	Data sheet	ISL8022EVAL2Z Eval Board ISL8022
Category	Development Boards, Kits, Programmers	Voltage - Output	1.8V, 2.5V
Voltage - Input	2.8 V ~ 5.5 V	Utilized IC / Part	ISL8022
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	2, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	15 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Not applicable / Not applicable
Frequency - Switching	2.25MHz	Detailed Description	ISL8022 - DC/DC, Step Down 2, Non-Isolated Outputs Evaluation Board
Current - Output	2A, 1.7A	Board Type	Fully Populated
