ISL6700IRZ-T

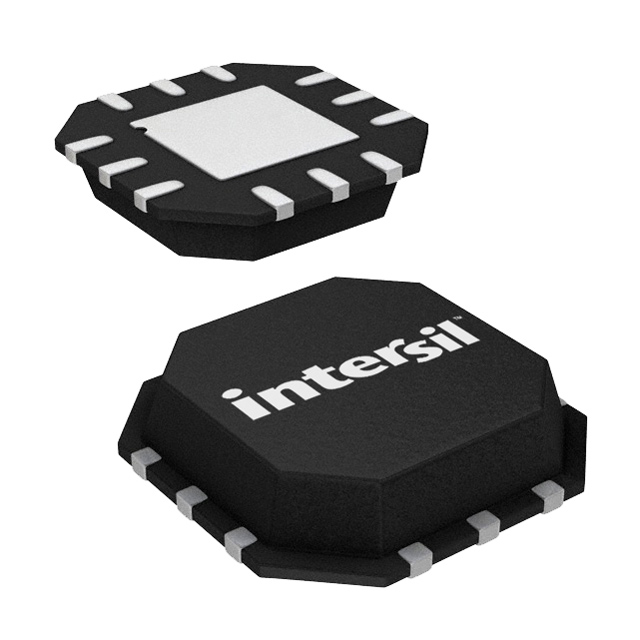

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL6700IRZ-T with confidence from Components-World.HK, 1 Year Warranty
Dowload ISL6700IRZ-T Details in PDFSee Product Specifications for product details.
Buy ISL6700IRZ-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ISL6700IRZ-T |
|---|---|
| Manufacturer | Intersil |
| Description | IC DRIVER HALF BRIDGE TTL 12-QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ISL6700IRZ-T | Manufacturer | Intersil |
|---|---|---|---|
| Description | IC DRIVER HALF BRIDGE TTL 12-QFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4732 pcs | Data sheet | ISL6700 |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 9 V ~ 15 V |
| Supplier Device Package | 12-QFN (4x4) | Series | - |
| Rise / Fall Time (Typ) | 5ns, 5ns | Packaging | Tape & Reel (TR) |
| Package / Case | 12-VQFN Exposed Pad | Operating Temperature | -40°C ~ 125°C (TJ) |
| Number of Drivers | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 80V | Gate Type | N-Channel MOSFET |
| Driven Configuration | Half-Bridge | Detailed Description | Half-Bridge Gate Driver IC Non-Inverting 12-QFN (4x4) |
| Current - Peak Output (Source, Sink) | 1.4A, 1.3A | Channel Type | Independent |
| Base Part Number | ISL6700 |
