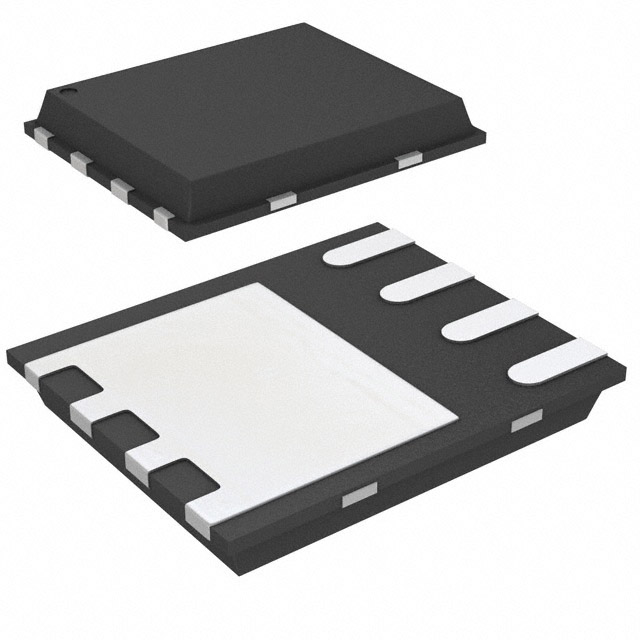

IRLH5030TR2PBF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRLH5030TR2PBF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IRLH5030TR2PBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRLH5030TR2PBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 100V 13A 8PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IRLH5030TR2PBF | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 100V 13A 8PQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5281 pcs | Data sheet | IRLH5030PBF |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 150µA |
| Vgs (Max) | ±16V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PQFN (5x6) Single Die | Series | HEXFET® |
| Rds On (Max) @ Id, Vgs | 9 mOhm @ 50A, 10V | Power Dissipation (Max) | 3.6W (Ta), 156W (Tc) |
| Packaging | Cut Tape (CT) | Package / Case | 8-PowerVDFN |
| Other Names | IRLH5030TR2PBFCT | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 5185pF @ 50V |
| Gate Charge (Qg) (Max) @ Vgs | 94nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 100V | Detailed Description | N-Channel 100V 13A (Ta), 100A (Tc) 3.6W (Ta), 156W (Tc) Surface Mount PQFN (5x6) Single Die |
| Current - Continuous Drain (Id) @ 25°C | 13A (Ta), 100A (Tc) |
