IPDD60R080G7XTMA1

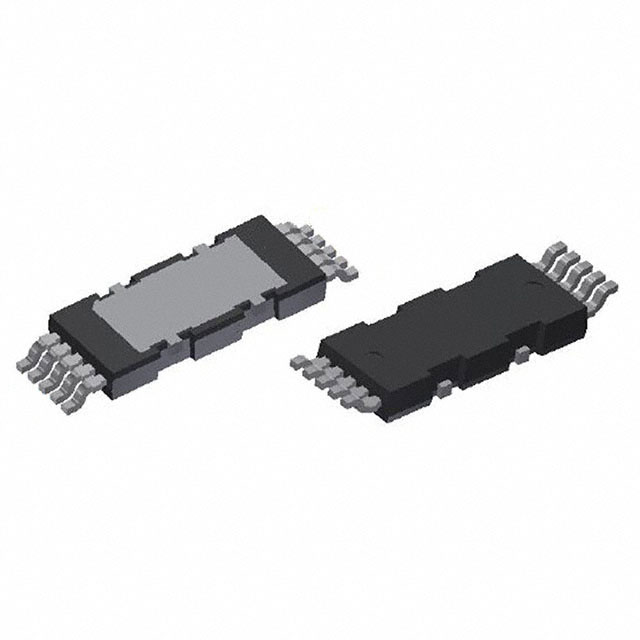

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPDD60R080G7XTMA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPDD60R080G7XTMA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPDD60R080G7XTMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET NCH 650V 83A PG-HDSOP-10 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $2.619 | $2.357 | $1.938 | $1.624 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | IPDD60R080G7XTMA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET NCH 650V 83A PG-HDSOP-10 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22861 pcs | Data sheet | IPDD60R080G7 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 490µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PG-HDSOP-10-1 | Series | CoolMOS™ G7 |
| Rds On (Max) @ Id, Vgs | 80 mOhm @ 9.7A, 10V | Power Dissipation (Max) | 174W (Tc) |
| Packaging | Cut Tape (CT) | Package / Case | 10-PowerSOP Module |
| Other Names | IPDD60R080G7XTMA1CT | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1640pF @ 400V |
| Gate Charge (Qg) (Max) @ Vgs | 42nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 600V | Detailed Description | N-Channel 600V 29A (Tc) 174W (Tc) Surface Mount PG-HDSOP-10-1 |
| Current - Continuous Drain (Id) @ 25°C | 29A (Tc) |
