IXFZ140N25T

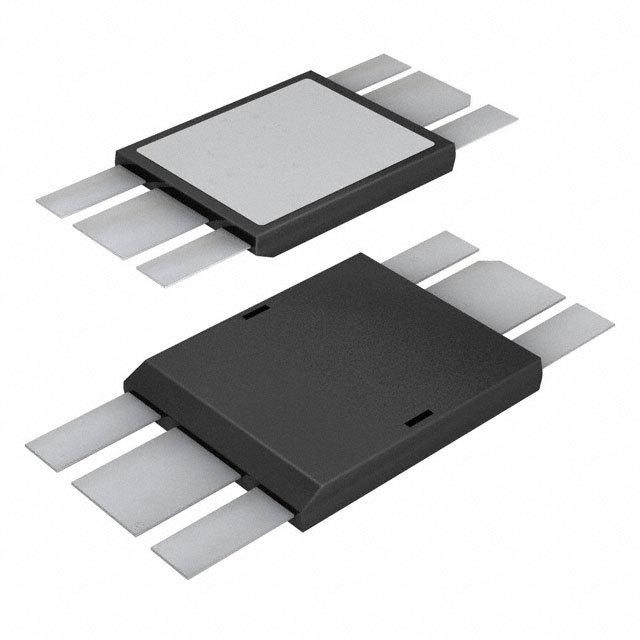

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXFZ140N25T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXFZ140N25T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | IXFZ140N25T |
---|---|
Manufacturer | IXYS Corporation |
Description | MOSFET N-CH 250V 100A DE475 |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 40 pcs | ||||
---|---|---|---|---|---|
$8.849 |
- Product parameter
- Data sheet
Product parameter
Part Number | IXFZ140N25T | Manufacturer | IXYS Corporation |
---|---|---|---|
Description | MOSFET N-CH 250V 100A DE475 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 4318 pcs | Data sheet | IXFZ140N25T |
Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 5V @ 4mA |
Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
Supplier Device Package | DE475 | Series | GigaMOS™ HiPerFET™ |
Rds On (Max) @ Id, Vgs | 17 mOhm @ 60A, 10V | Power Dissipation (Max) | 445W (Tc) |
Packaging | Tube | Package / Case | DE475 |
Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 26 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 19000pF @ 25V |
Gate Charge (Qg) (Max) @ Vgs | 255nC @ 10V | FET Type | N-Channel |
FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
Drain to Source Voltage (Vdss) | 250V | Detailed Description | N-Channel 250V 100A (Tc) 445W (Tc) Surface Mount DE475 |
Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
