Home > Products > Switches > Snap Action, Limit Switches > 1TB1-3

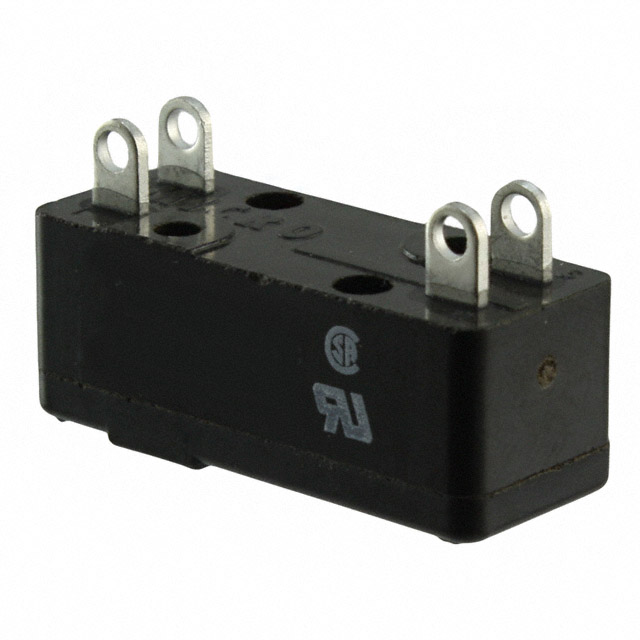

1TB1-3

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1TB1-3 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	1TB1-3
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1887 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$24.044	$19.918	$19.059	$18.317	$17.444

Product parameter
Data sheet

Product parameter

Part Number	1TB1-3	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1887 pcs	Data sheet	BS, DT, MN, MT, TB Series
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-Mom
Series	TB	Release Force	113gf
Pretravel	0.060" (1.5mm)	Packaging	Bulk
Overtravel	0.010" (0.25mm)	Other Names	1TB1-3-ND 1TB13 480-4110
Operating Temperature	-55°C ~ 125°C	Operating Position	0.460" (11.7mm)
Operating Force	198 ~ 368gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	7,000,000 Cycles
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	-	Differential Travel	0.025" (0.6mm)
Current Rating	10A (AC)	Circuit	SPDT (DB/DM)
Actuator Type	Round (Pin Plunger)
