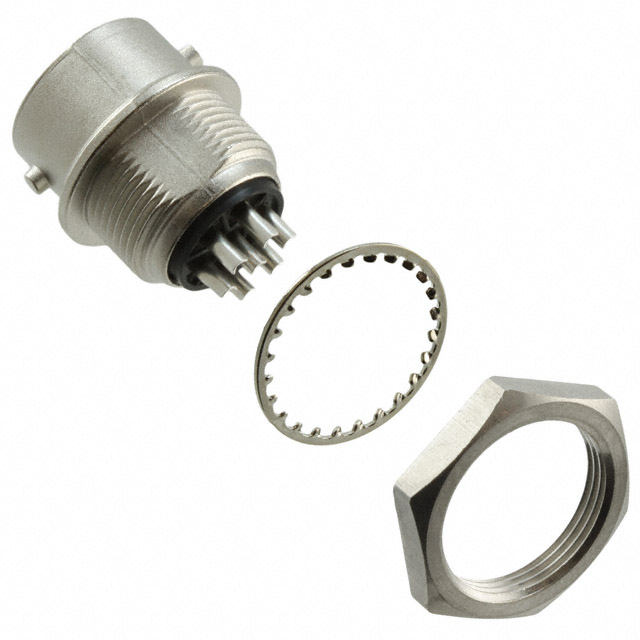

RM12BRD-7PH(71)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RM12BRD-7PH(71) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RM12BRD-7PH(71) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RM12BRD-7PH(71) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RCPT MALE 7POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.911 | $2.79 | $2.548 | $2.426 | $2.305 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | RM12BRD-7PH(71) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT MALE 7POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16545 pcs | Data sheet | RM Series |
| Category | Connectors, Interconnects | Voltage Rating | 350VAC, 490VDC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 12 |
| Shell Material | Zinc Alloy | Shell Finish | Nickel |
| Series | RM | Packaging | Bulk |
| Other Names | *RM12BRD-7PH(71) HR1766 RM12BRD7PH71 |
Orientation | Keyed |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 7 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Rear Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Diallyl Phthalate (DAP) | Ingress Protection | - |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 7 Position Circular Connector Receptacle, Male Pins Solder Cup Silver | Current Rating | 5A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Male Pins |
| Color | Silver | Cable Opening | - |
| Backshell Material, Plating | - | Applications | - |
