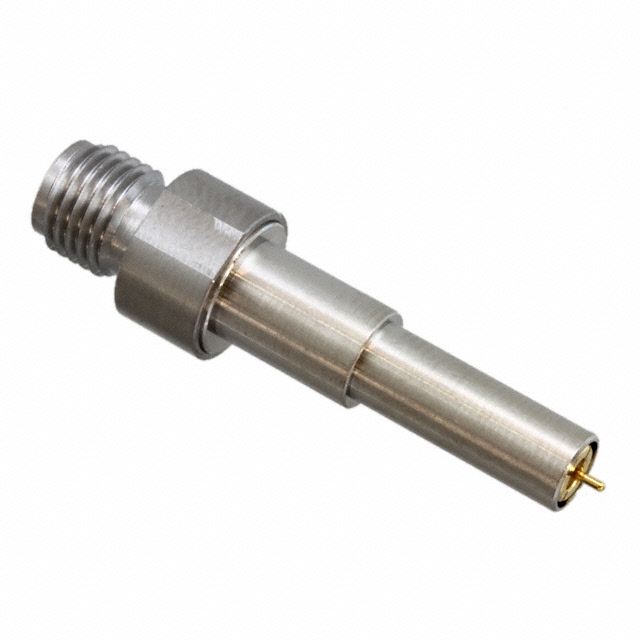

MS-156-HRMJ-5
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS-156-HRMJ-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MS-156-HRMJ-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MS-156-HRMJ-5 |
|---|---|
| Manufacturer | Hirose |
| Description | CONN ADAPT COAX PLUG TO SMA JACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $29.875 | $28.118 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MS-156-HRMJ-5 | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN ADAPT COAX PLUG TO SMA JACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1326 pcs | Data sheet | MS-156-HRMJ-5 DrawingMS-156HF Series |
| Category | Connectors, Interconnects | Style | Straight |
| Series | MS-156 | Packaging | Bulk |
| Other Names | H122462 MS-156-HRMJ-5-ND MS156HRMJ5 |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Frequency - Max | 6GHz | Features | - |
| Fastening Type | Push-Pull, Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector Coaxial Switch - 4mm Plug Dia Plug, Male Pin To SMA Jack, Female Socket 50 Ohm | Convert To (Adapter End) | SMA Jack, Female Socket |
| Convert From (Adapter End) | Coaxial Switch - 4mm Plug Dia Plug, Male Pin | Conversion Type | Between Series |
| Center Gender | Female to Male | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Body Material | Phosphor Bronze; Stainless Steel |
| Body Finish | Nickel; Passivated | Adapter Type | Plug to Jack |
| Adapter Series | SMA to Coaxial Switch |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
