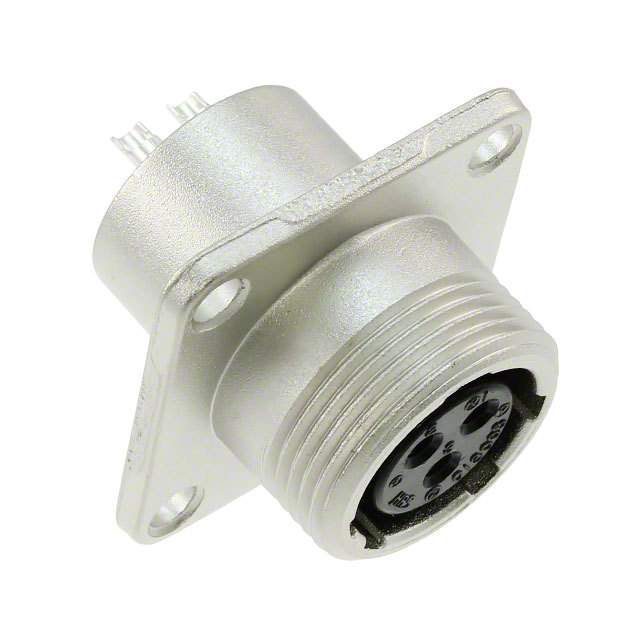

JR13RK-3S


OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JR13RK-3S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JR13RK-3S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | JR13RK-3S |
---|---|
Manufacturer | Hirose |
Description | CONN RCPT FMALE 3POS SOLDER CUP |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
---|---|---|---|---|---|
$2.179 | $2.09 | $1.916 | $1.829 | $1.742 |
- Product parameter
- Data sheet
Product parameter
Part Number | JR13RK-3S | Manufacturer | Hirose |
---|---|---|---|
Description | CONN RCPT FMALE 3POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 18537 pcs | Data sheet | JR Series |
Category | Connectors, Interconnects | Voltage Rating | 250VAC, 350VDC |
Termination | Solder Cup | Shielding | Unshielded |
Shell Size, MIL | - | Shell Size - Insert | 13 |
Shell Material | Aluminum Alloy | Shell Finish | Nickel |
Series | JR | Packaging | Bulk |
Other Names | H124096 JR13RK-3S-ND |
Orientation | Keyed |
Operating Temperature | -25°C ~ 85°C | Number of Positions | 3 |
Mounting Type | Panel Mount | Mounting Feature | Flange |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insert Material | Phenol Formaldehyde (PF) | Ingress Protection | - |
Features | - | Fastening Type | Threaded |
Detailed Description | 3 Position Circular Connector Receptacle, Female Sockets Solder Cup Silver | Current Rating | 10A |
Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
Contact Finish - Mating | Silver | Connector Type | Receptacle, Female Sockets |
Color | Silver | Cable Opening | 0.626" (15.90mm) |
Backshell Material, Plating | - | Applications | - |
