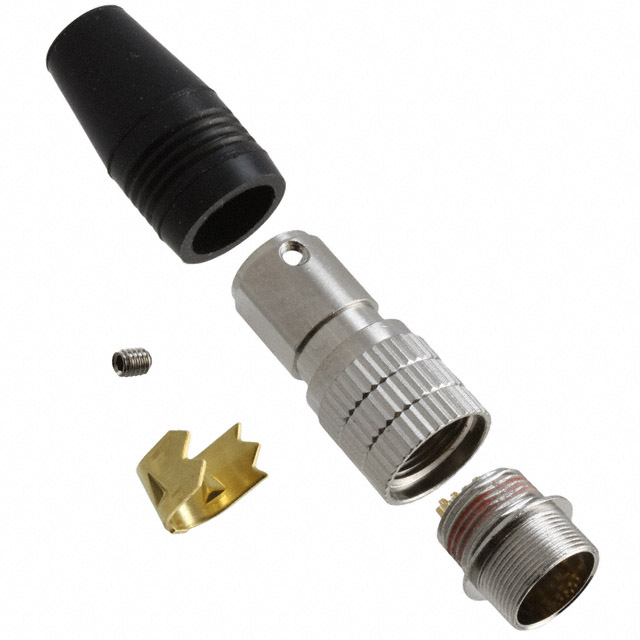

HR25-9TJ-20P(72)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HR25-9TJ-20P(72) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HR25-9TJ-20P(72) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HR25-9TJ-20P(72) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN JACK MALE 20POS GOLD SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $13.654 | $12.326 | $11.809 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HR25-9TJ-20P(72) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN JACK MALE 20POS GOLD SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2731 pcs | Data sheet | HR25 Series |
| Category | Connectors, Interconnects | Voltage Rating | 30VAC, 42VDC |
| Termination | Solder Cup | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | 9 |
| Shell Material | Zinc Alloy | Shell Finish | Nickel |
| Series | HR25 | Packaging | Bulk |
| Other Names | *HR25-9TJ-20P(72) HR1455 HR259TJ20P72 |
Orientation | Keyed |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 20 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyphenylene Sulfide (PPS) | Ingress Protection | - |
| Features | Backshell, Clamp, Strain Relief | Fastening Type | Threaded |
| Detailed Description | 20 Position Circular Connector Jack, Male Pins Solder Cup Gold | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Mating | Gold | Connector Type | Jack, Male Pins |
| Color | Black, Silver | Cable Opening | - |
| Backshell Material, Plating | Brass, Nickel | Applications | Industrial |
