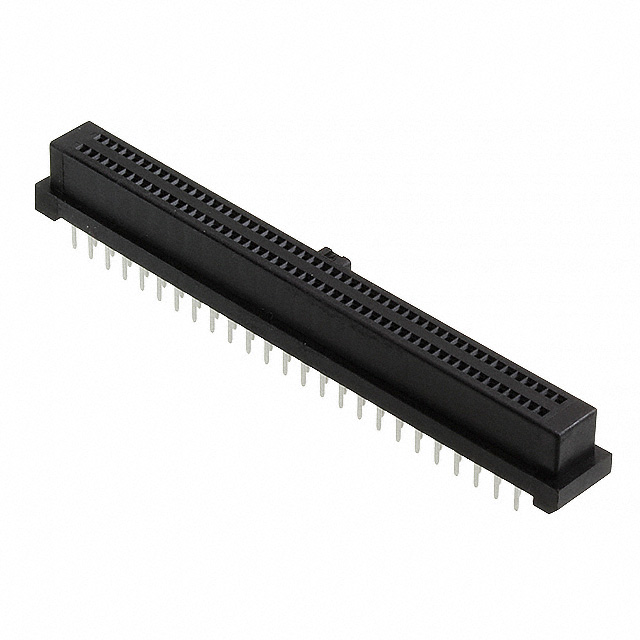

HIF6A-100DA-1.27DSA(71)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HIF6A-100DA-1.27DSA(71) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HIF6A-100DA-1.27DSA(71) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HIF6A-100DA-1.27DSA(71) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HOUSING 100POS 1.27MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | 120 pcs |
|---|---|---|---|---|---|
| $3.044 | $2.912 | $2.647 | $2.515 | $2.449 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | HIF6A-100DA-1.27DSA(71) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HOUSING 100POS 1.27MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14725 pcs | Data sheet | HIF6 Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 125VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | HIF6 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Bulk |
| Other Names | 631-0111-9-71 H123952 HIF6A-100DA-1.27DSA(71)-ND |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 100 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 14.8mm | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.346" (8.80mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Polarizing Key |
| Fastening Type | Push-Pull | Detailed Description | 100 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold |
| Current Rating | 0.5A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose |
