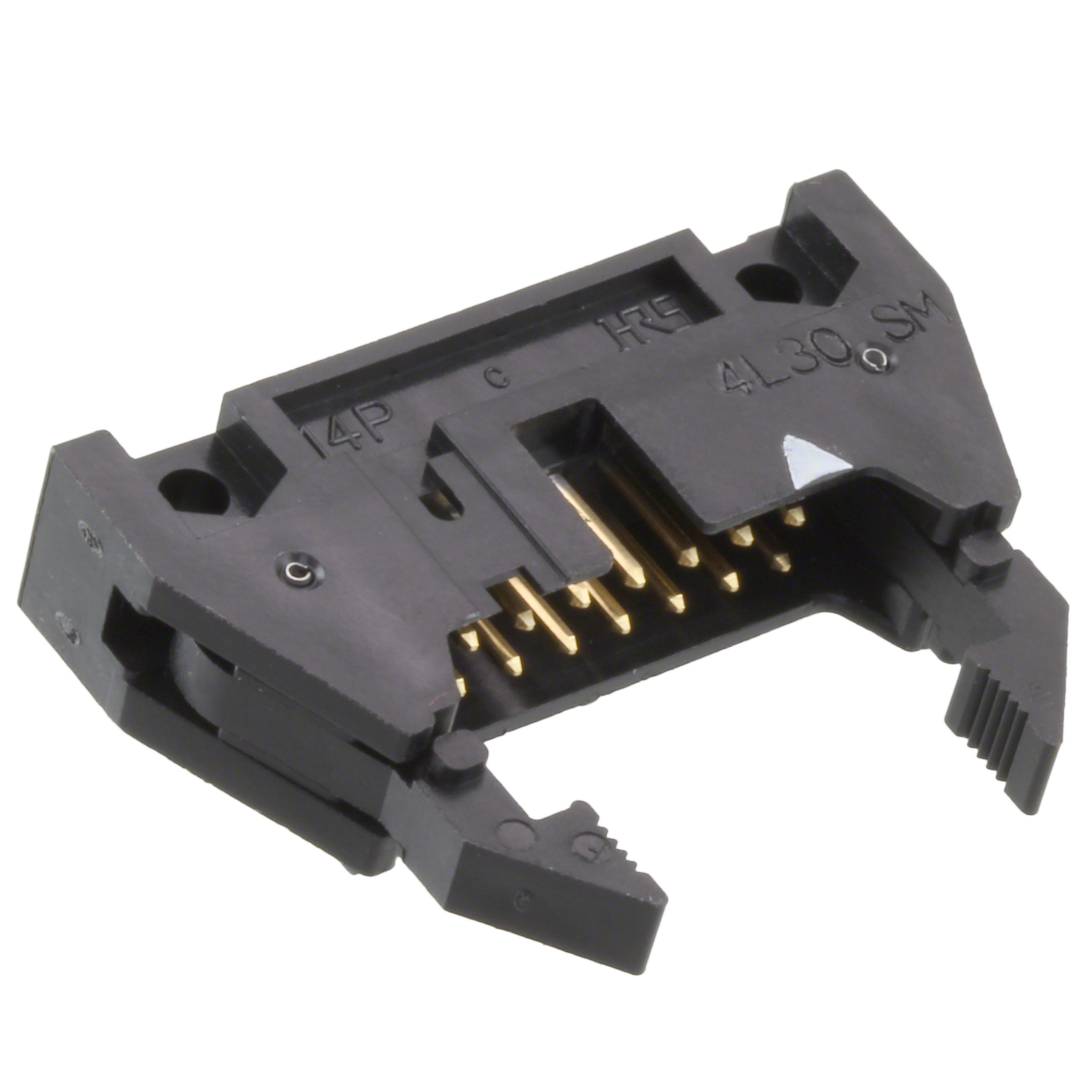

HIF3BAF-14PA-2.54DS(71)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HIF3BAF-14PA-2.54DS(71) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HIF3BAF-14PA-2.54DS(71) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | HIF3BAF-14PA-2.54DS(71) |
---|---|
Manufacturer | Hirose |
Description | CONN HDR 14POS 2.54MM |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 160 pcs | ||
---|---|---|---|---|---|
$1.245 | $1.195 | $0.996 |
- Product parameter
- Data sheet
Product parameter
Part Number | HIF3BAF-14PA-2.54DS(71) | Manufacturer | Hirose |
---|---|---|---|
Description | CONN HDR 14POS 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 38106 pcs | Data sheet | HIF3B Series |
Category | Connectors, Interconnects | Voltage Rating | 200V |
Termination | Solder | Style | Board to Cable/Wire |
Shrouding | Shrouded - 4 Wall | Series | HIF3B |
Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Bulk | Overall Contact Length | - |
Other Names | 610-0232-2-71 H123754 HIF3BAF-14PA-2.54DS(71)-ND |
Operating Temperature | -55°C ~ 85°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 14 | Mounting Type | Through Hole, Right Angle |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
Insulation Height | 0.335" (8.51mm) | Insulation Color | Black |
Ingress Protection | - | Features | Keying Slot, Mounting Flange |
Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm) |
Current Rating | 1A | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Brass |
Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | 0.236" (6.00mm) |
Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | - |
