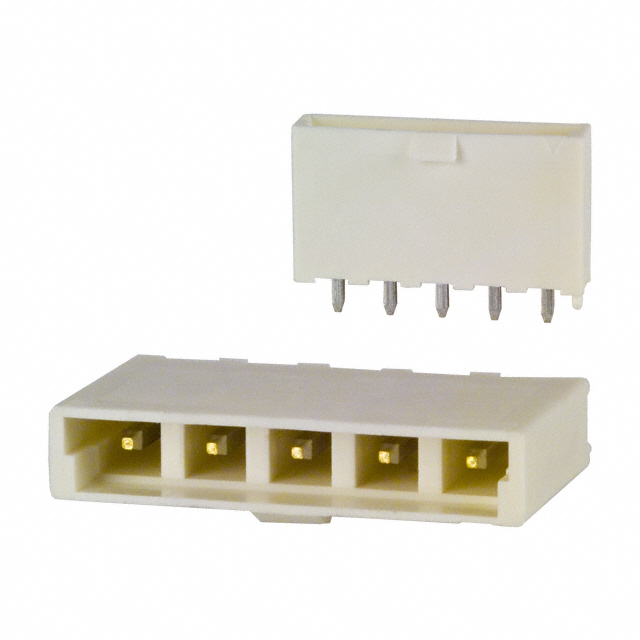

DF5A-5P-5DSA(05)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF5A-5P-5DSA(05) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF5A-5P-5DSA(05) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF5A-5P-5DSA(05) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 5POS 5MM STRGHT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF5A-5P-5DSA(05) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 5POS 5MM STRGHT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6028 pcs | Data sheet | DF5(A) Series |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DF5 |
| Row Spacing - Mating | - | Pitch - Mating | 0.197" (5.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | *DF5A-5P-5DSA(05) DF5A5P5DSA05 H10284 |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 22.5mm | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.591" (15.00mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole 5 position 0.197" (5.00mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.138" (3.50mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
