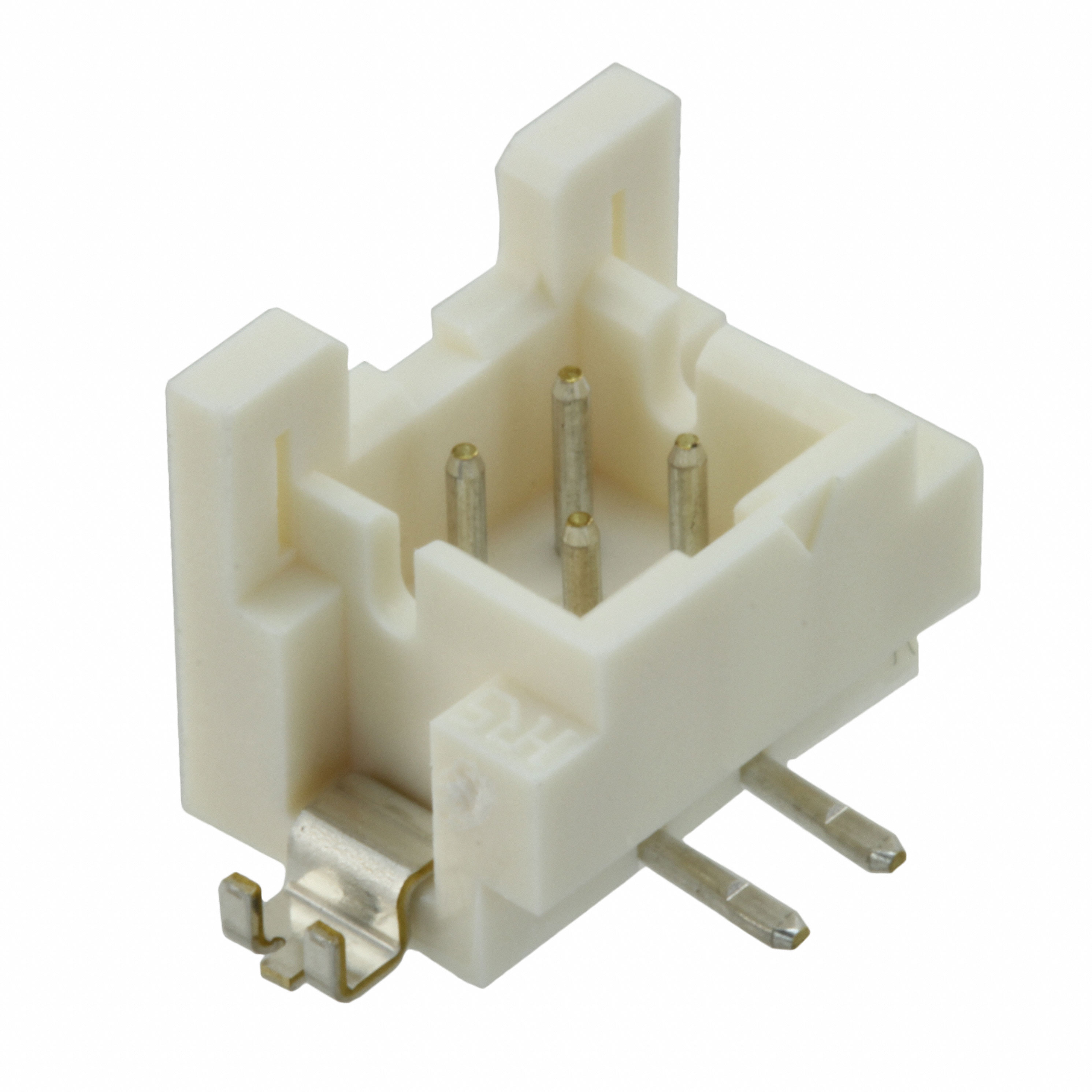

DF11Z-4DP-2V(27)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF11Z-4DP-2V(27) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF11Z-4DP-2V(27) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | DF11Z-4DP-2V(27) |
---|---|
Manufacturer | Hirose |
Description | CONN HDR 4POS |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 1500 pcs | ||
---|---|---|---|---|---|
$0.251 | $0.223 | $0.209 |
- Product parameter
- Data sheet
Product parameter
Part Number | DF11Z-4DP-2V(27) | Manufacturer | Hirose |
---|---|---|---|
Description | CONN HDR 4POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 97224 pcs | Data sheet | DF11 Series DatasheetDF11Z-xxDP-2V(27) DrawingDF11Z-xxDP-2V(27) Spec |
Category | Connectors, Interconnects | Voltage Rating | 250V |
Termination | Solder | Style | Board to Board or Cable |
Shrouding | Shrouded - 4 Wall | Series | DF11 |
Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
Packaging | Tape & Reel (TR) | Overall Contact Length | - |
Other Names | 543-2017-3-27 DF11Z-4DP-2V(27)-ND H125967TR |
Operating Temperature | -30°C ~ 85°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 4 | Mounting Type | Surface Mount |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | 8.2mm, 8.45mm, 9.55mm | Manufacturer Standard Lead Time | 12 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
Insulation Height | 0.283" (7.19mm) | Insulation Color | Beige |
Ingress Protection | - | Features | Board Guide, Pick and Place, Solder Retention |
Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount 4 position 0.079" (2.00mm) |
Current Rating | 2A | Contact Type | Male Pin |
Contact Shape | Circular | Contact Material | Brass |
Contact Length - Post | - | Contact Length - Mating | - |
Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
Connector Type | Header | Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
