A3C-18DA-2DSA

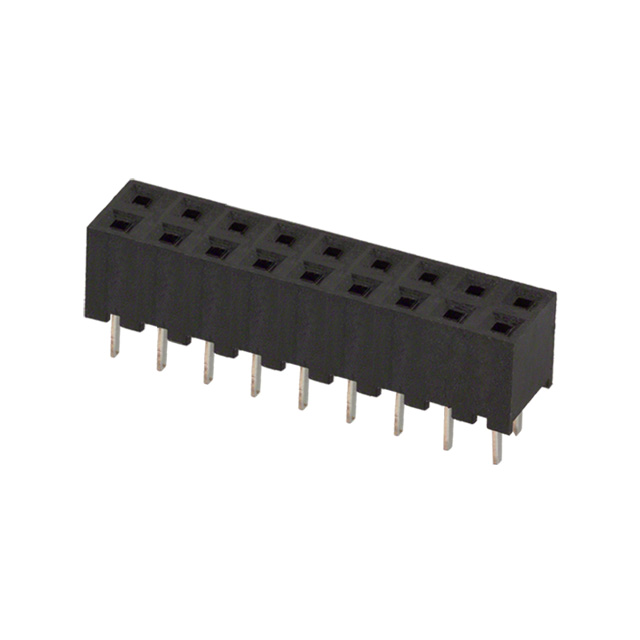

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A3C-18DA-2DSA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A3C-18DA-2DSA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | A3C-18DA-2DSA |
---|---|
Manufacturer | Hirose |
Description | CONN RECEPT 18POS 2MM GOLD DIP |
Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Reference Price (In US Dollars) | Get a quote |
- Product parameter
- Data sheet
Product parameter
Part Number | A3C-18DA-2DSA | Manufacturer | Hirose |
---|---|---|---|
Description | CONN RECEPT 18POS 2MM GOLD DIP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Quantity Available | 4795 pcs | Data sheet | A3,A4 Series |
Category | Connectors, Interconnects | Voltage Rating | 200VAC |
Termination | Solder | Style | Board to Board or Cable |
Series | A3 | Row Spacing - Mating | 0.079" (2.00mm) |
Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
Other Names | *A3C-18DA-2DSA H1856 |
Operating Temperature | -55°C ~ 85°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 18 | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | 5.1mm, 6mm | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.165" (4.20mm) |
Insulation Color | Black | Ingress Protection | - |
Features | - | Fastening Type | Push-Pull |
Detailed Description | 18 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | 1A |
Contact Type | Female Socket | Contact Shape | Square |
Contact Material | Phosphor Bronze | Contact Length - Post | 0.118" (3.00mm) |
Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Receptacle | Applications | General Purpose, Telecommunications |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
