Home > Products > Tools > Crimpers - Crimp Heads, Die Sets > T5747

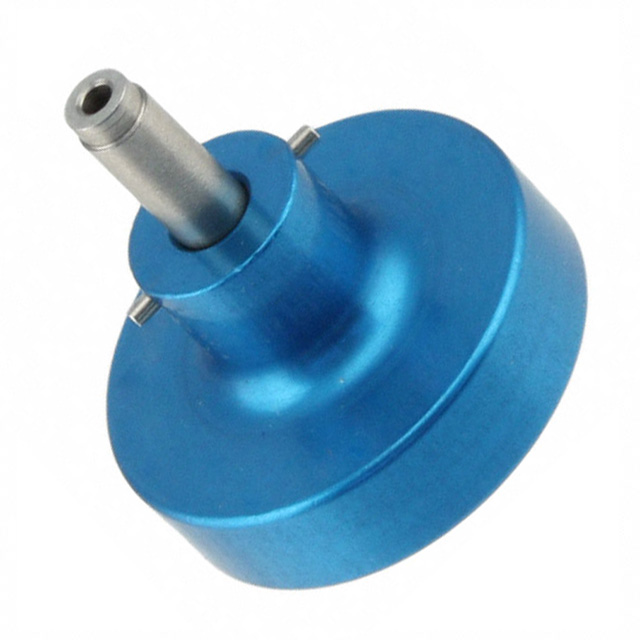

T5747

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy T5747 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	T5747
Manufacturer	Harwin
Description	POSITIONER M22520/2-01 22-28AWG
Lead Free Status / RoHS Status	Not applicable / Not applicable

~~In Stock~~ 737 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	25 pcs
Reference Price (In US Dollars)	$51.384	$48.272	$46.714	$45.157

Product parameter
Data sheet

Product parameter

Part Number	T5747	Manufacturer	Harwin
Description	POSITIONER M22520/2-01 22-28AWG	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	737 pcs	Data sheet	Datamate Catalog M22520/2-01
Category	Tools	Tool Type	Positioner
Specifications	-	Series	Datamate
Other Names	952-1239	Moisture Sensitivity Level (MSL)	Not Applicable
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Not applicable / Not applicable
For Use With/Related Products	Rectangular Contacts, 22-28 AWG	Compatible Tools	M22520/2-01
Cable Group	-

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
