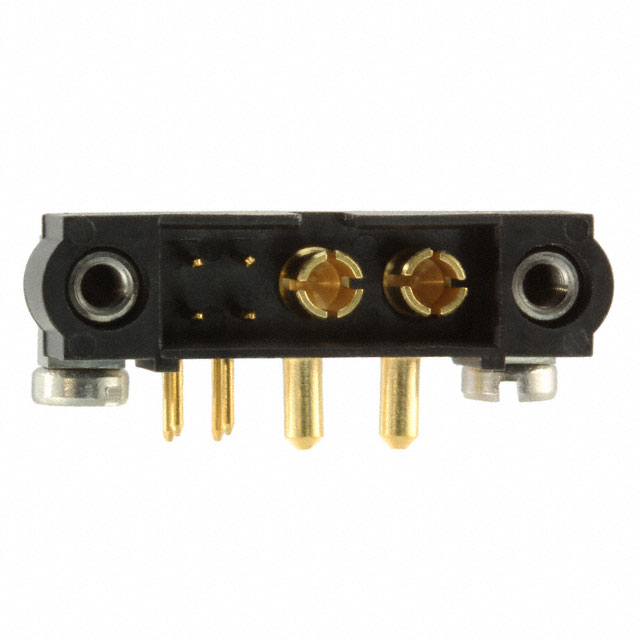

M80-5L10405M5-02-333-00-000
![M80-5L10405M5-02-333-00-000](/thumb/medium/b9/M80-5L10405M5-02-333-00-000.jpg)
![](/upfile/linecard/medium_Harwin.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-5L10405M5-02-333-00-000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-5L10405M5-02-333-00-000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | M80-5L10405M5-02-333-00-000 |
---|---|
Manufacturer | Harwin |
Description | MIX-TEK M HORIZ 4-2POS PCB |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 12 pcs | 108 pcs | ||
---|---|---|---|---|---|
$11.874 | $10.718 | $9.306 |
- Product parameter
- Data sheet
Product parameter
Part Number | M80-5L10405M5-02-333-00-000 | Manufacturer | Harwin |
---|---|---|---|
Description | MIX-TEK M HORIZ 4-2POS PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 3780 pcs | Data sheet | M80, M83 Series Spec SheetDatamate CatalogM80-5L10405M5-02-333-00-000 Drawing |
Category | Connectors, Interconnects | Voltage Rating | 800V |
Termination | Solder | Style | Board to Cable/Wire |
Shrouding | Shrouded - 4 Wall | Series | Datamate Mix-Tek |
Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
Packaging | Tube | Overall Contact Length | - |
Other Names | 952-2923 M80-5L10405M5-02-333-00-000-ND |
Operating Temperature | -55°C ~ 125°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 6 (4 + 2 Power) | Mounting Type | Through Hole, Right Angle |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
Insulation Height | 0.218" (5.55mm) | Insulation Color | Black |
Ingress Protection | - | Features | Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware |
Fastening Type | Threaded | Detailed Description | Connector Header Through Hole, Right Angle 6 (4 + 2 Power) position 0.079" (2.00mm) |
Current Rating | - | Contact Type | Male Pin |
Contact Shape | Circular | Contact Material | - |
Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | - |
Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
Contact Finish - Post | - | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
