M80-5020842
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-5020842 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-5020842 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | M80-5020842 |
---|---|
Manufacturer | Harwin |

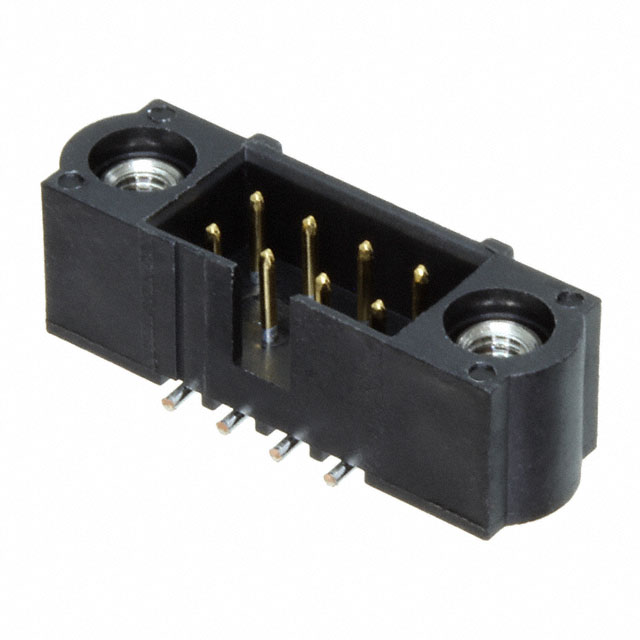

Description | CONN HDR 2MM SMD AU 8POS |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 14 pcs | 112 pcs | 504 pcs | 1008 pcs |
---|---|---|---|---|---|
$4.211 | $3.829 | $3.255 | $2.776 | $2.546 |
- Product parameter
- Data sheet
Product parameter
Part Number | M80-5020842 | Manufacturer | Harwin |
---|---|---|---|
Description | CONN HDR 2MM SMD AU 8POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 11990 pcs | Data sheet | M80-502yyyy DrawingM80, M83 Series Spec SheetDatamate Catalog |
Category | Connectors, Interconnects | Voltage Rating | 800V |
Termination | Solder | Style | Board to Board or Cable |
Shrouding | Shrouded - 4 Wall | Series | Datamate J-Tek |
Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
Packaging | Tube | Overall Contact Length | - |
Other Names | 952-3805 | Operating Temperature | -55°C ~ 125°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 8 | Mounting Type | Surface Mount |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | 7.55mm, 7.95mm, 10.1mm, 11.1mm, 13.65mm, 15.1mm | Manufacturer Standard Lead Time | 9 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
Ingress Protection | - | Features | Keying Slot, Mating Flange |
Fastening Type | Threaded | Detailed Description | Connector Header Surface Mount 8 position 0.079" (2.00mm) |
Current Rating | 2.2A | Contact Type | Male Pin |
Contact Shape | Circular | Contact Material | Phosphor Bronze |
Contact Length - Post | - | Contact Length - Mating | - |
Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | - |
