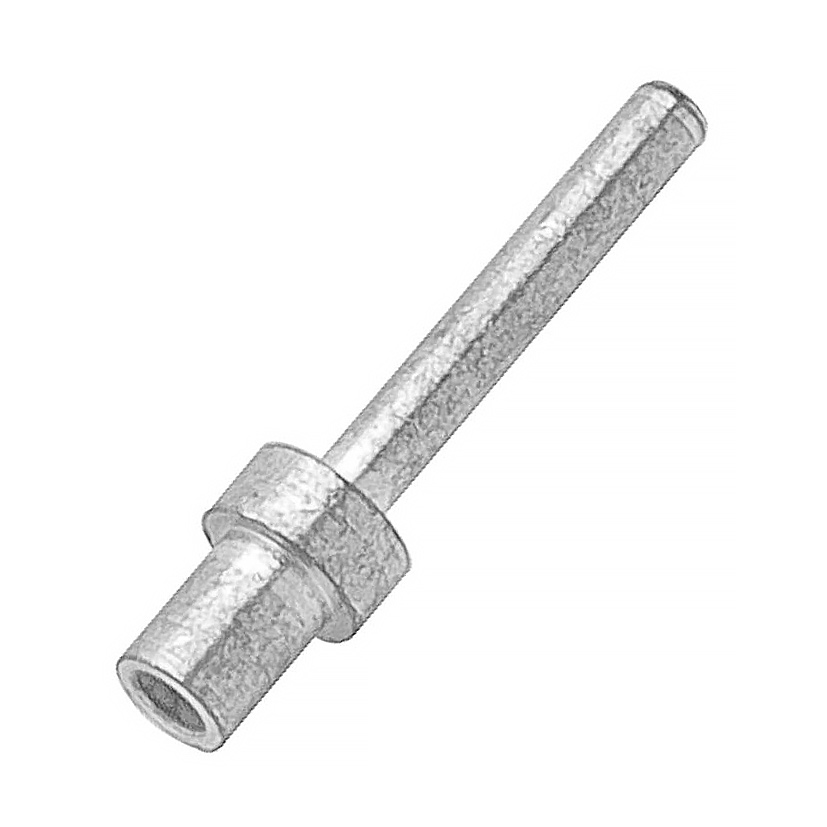

H2159-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H2159-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H2159-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H2159-01 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN PC PIN CIRC .64DIA TIN/NICK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 20000 pcs | ||||
|---|---|---|---|---|---|
| $0.031 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | H2159-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN PC PIN CIRC .64DIA TIN/NICK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 714097 pcs | Data sheet | H2159-xx Drawing |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | - | Pin Size - Below Flange | - |
| Pin Size - Above Flange | 0.025" (0.64mm) Dia | Packaging | Bulk |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.042" ~ 0.045" (1.07mm ~ 1.14mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 11 Weeks | Length - Overall | 0.240" (6.10mm) |
| Length - Below Flange | 0.051" (1.30mm) | Length - Above Flange | 0.165" (4.18mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.057" (1.45mm) |
| Detailed Description | PC Pin Terminal Connector Through Hole Tin 0.025" (0.64mm) Dia | Contact Material | Brass |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Board Thickness | 0.031" (0.79mm) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
