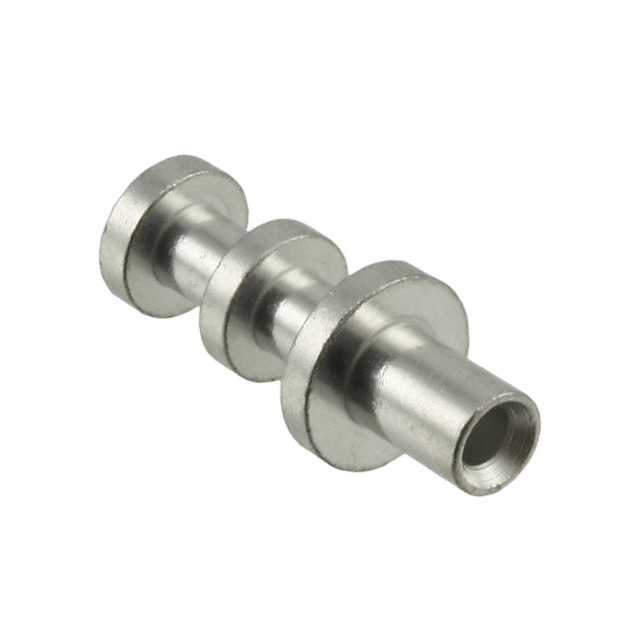

H2121-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H2121-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H2121-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H2121-01 |
|---|---|
| Manufacturer | Harwin |
| Description | TERM TURRET SINGLE L=5.15MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.13 | $0.125 | $0.107 | $0.091 | $0.087 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.078 | $0.075 | $0.062 | $0.057 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H2121-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | TERM TURRET SINGLE L=5.15MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 406765 pcs | Data sheet | H2121 DrawingPCB Hardware Catalog |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | Single End | Staking Side OD | 0.039" (0.99mm) |
| Staking Side ID | - | Series | - |
| Other Names | 952-1440 H212101 |
Number of Turrets | Double |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.066" ~ 0.068" (1.68mm ~ 1.72mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.297" (7.54mm) |
| Length - Below Flange | 0.094" ~ 0.099" (2.39mm ~ 2.51mm) | Length - Above Board | 0.203" (5.15mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.125" (3.18mm) |
| Diameter - Turret Head | 0.094" (2.39mm) | Detailed Description | Terminal Turret Connector Single End 0.203" (5.15mm) Tin |
| Contact Material | Brass Alloy | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.063" (1.60mm) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
