125DSE

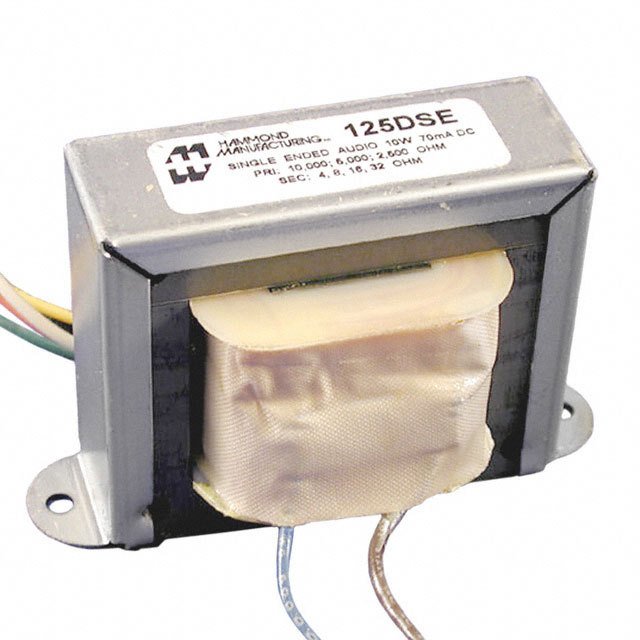

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 125DSE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 125DSE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 125DSE |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | TRANSFORMER 10W 70MA TUBE SNGL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $19.35 | $18.705 | $17.415 | $16.125 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 125DSE | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | TRANSFORMER 10W 70MA TUBE SNGL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2164 pcs | Data sheet | 125DSE Drawing125SE Series |
| Category | Transformers | Weight | 2 lbs (907.2g) |
| Voltage - Isolation | 1500V @ 1 Second | Turns Ratio - Primary:Secondary | - |
| Transformer Type | General Purpose | Termination Style | Wire Leads |
| Size / Dimension | 4.000" L x 2.100" W (101.60mm x 53.34mm) | Series | 125SE |
| Return Loss | - | Power Level | 10W |
| Packaging | Bulk | Other Names | 125DSE-ND HM2520 |
| Operating Temperature | - | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | Not Applicable | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Impedance - Secondary (Ohms) | 4 ~ 32 | Impedance - Primary (Ohms) | 2.5k ~ 10k |
| Height - Seated (Max) | 2.630" (66.80mm) | Frequency Response | ±1dB |
| Frequency Range | 100Hz ~ 15kHz | DC Resistance (DCR) - Secondary | 590 mOhm |
| DC Resistance (DCR) - Primary | 115 Ohm | Approvals | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
