Home > Products > Circuit Protection > Electrical, Specialty Fuses > 0SPF025.HXR

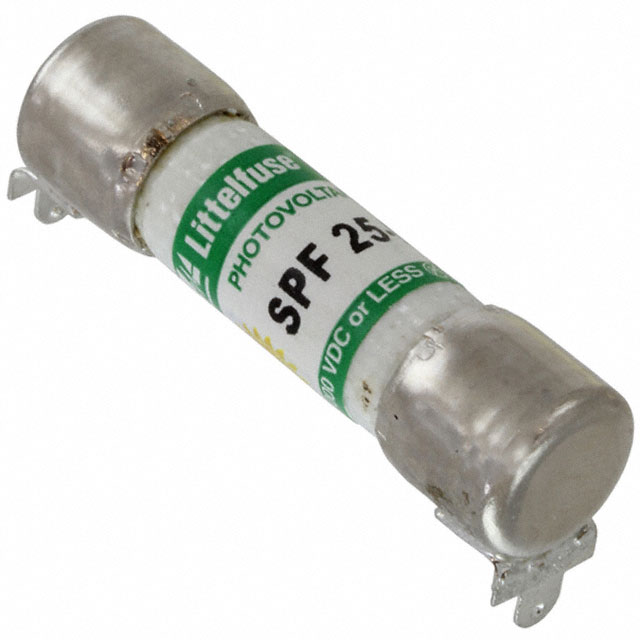

0SPF025.HXR

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0SPF025.HXR with confidence from Components-World.HK, 1 Year Warranty

Dowload 0SPF025.HXR Details in PDF

Request a Quote

Part Number	0SPF025.HXR
Manufacturer	Hamlin / Littelfuse
Description	FUSE CARTRIDGE 25A 1KVDC 5AG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 9827 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	50 pcs
	$7.328	$6.765	$6.201	$5.356
	$4.51	$4.228	$3.805

Product parameter
Data sheet

Product parameter

Part Number	0SPF025.HXR	Manufacturer	Hamlin / Littelfuse
Description	FUSE CARTRIDGE 25A 1KVDC 5AG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9827 pcs	Data sheet	SPF Series Solar Fuse
Category	Circuit Protection	Voltage Rating - DC	1kV
Size / Dimension	0.406" Dia x 1.500" L (10.31mm x 38.10mm)	Series	POWR-GARD® SPF
Response Time	Fast	Packaging	Bulk
Package / Case	5AG, 10mm x 38.1mm	Other Names	0SPF025HXR F5910 SPF 25A-R SPF025.HXR SPF025.R SPF025HXR SPF025R
Operating Temperature	-	Mounting Type	PCB
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Fuse Type	Cartridge
Features	-	DC Cold Resistance	0.00353 Ohms
Current Rating	25A	Class	-
Breaking Capacity @ Rated Voltage	20kA	Approvals	CE, CSA, UL
Applications	Solar (Photovoltaic)
