Home > Products > Circuit Protection > Fuseholders > 03420838HXL

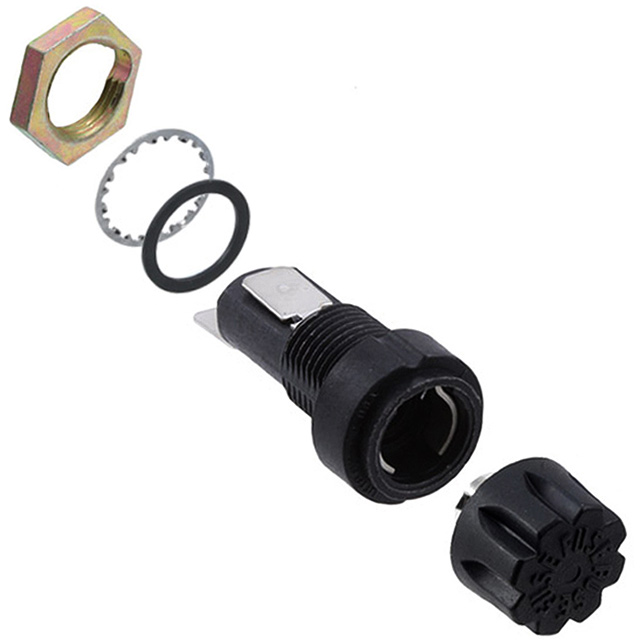

03420838HXL

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 03420838HXL with confidence from Components-World.HK, 1 Year Warranty

Dowload 03420838HXL Details in PDF

Request a Quote

Part Number	03420838HXL
Manufacturer	Hamlin / Littelfuse
Description	FUSE HLDR CART 250V 20A PNL MNT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 44634 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	50 pcs	100 pcs
	$1.573	$1.52	$1.466	$1.14	$0.95
	$0.923	$0.787	$0.747	$0.679

Product parameter
Data sheet

Product parameter

Part Number	03420838HXL	Manufacturer	Hamlin / Littelfuse
Description	FUSE HLDR CART 250V 20A PNL MNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	44634 pcs	Data sheet	342 Series Datasheet Fuse, Fuseholder Product Guide
Category	Circuit Protection	Voltage	250V
Termination Style	Quick Connect - 0.250" (6.3mm)	Series	342
Other Names	03420838HXL-ND 342838L F4874 H342838L	Orientation	-
Number of Circuits	1	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	Not Applicable	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Fuseholder Type	Holder
Fuse Type	Cartridge	Fuse Size	1/4" Dia x 1 1/4" L (6.4mm x 31.8mm)
For Use With/Related Products	3AG	Detailed Description	Fuse Holder 20A 250V 1 Circuit Cartridge Panel Mount
Current Rating	20A	Contact Material	Brass
Contact Finish	Nickel
