16241701301000

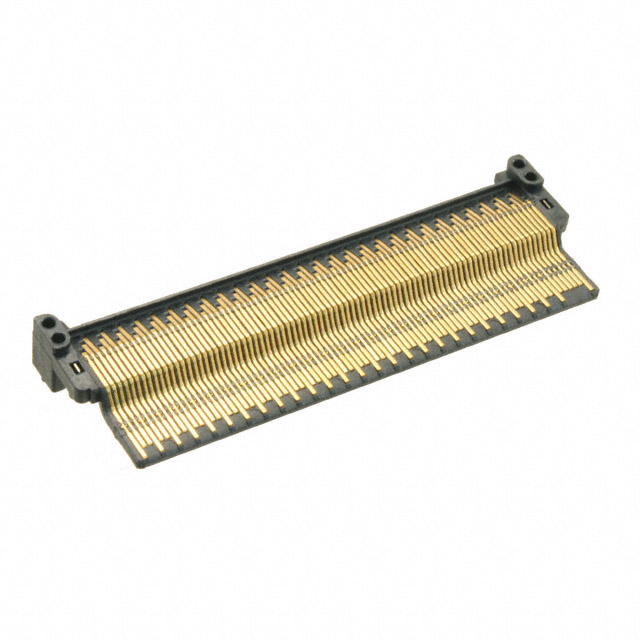

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 16241701301000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 16241701301000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 16241701301000 |
|---|---|
| Manufacturer | HARTING |
| Description | PLUG CONNECTOR MCH BASIC SIDE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 16241701301000 | Manufacturer | HARTING |
|---|---|---|---|
| Description | PLUG CONNECTOR MCH BASIC SIDE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6005 pcs | Data sheet | 16241701301000 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit | Series | ATCA / mTCA |
| Pitch | 0.029" (0.75mm) | Packaging | Tray |
| Other Names | 1195-3010 | Operating Temperature | - |
| Number of Rows | - | Number of Positions Loaded | All |
| Number of Positions | 170 | Number of Columns | - |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Board Guide | Current Rating | - |
| Contact Layout, Typical | - | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector Usage | Backplane-to-Daughtercard |
| Connector Type | Plug, Piggyback | Connector Style | MCH |
| Color | - |
