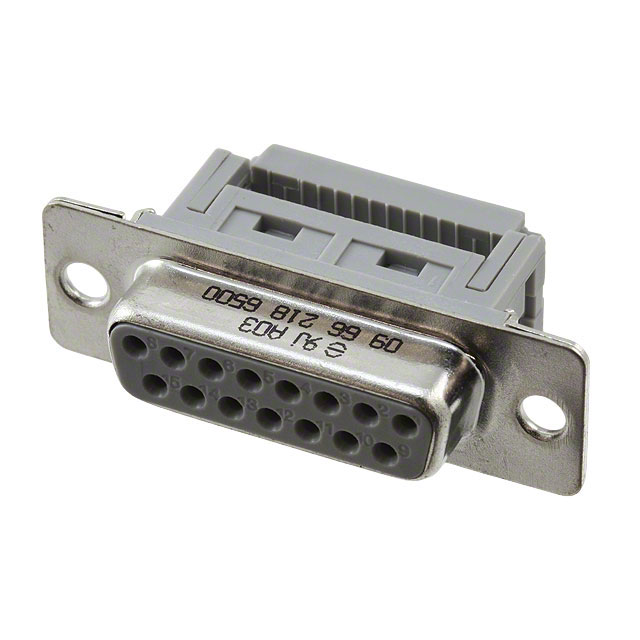

09662186500
![09662186500](/thumb/medium/78/09662186500.jpg)
![](/upfile/linecard/medium_HARTING.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09662186500 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09662186500 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 09662186500 |
---|---|
Manufacturer | HARTING |
Description | CONN DSUB RCPT 15POS PNL MNT IDC |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
---|---|---|---|---|---|
$3.606 | $3.449 | $3.135 | $2.979 | ||
100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
$2.90 | $2.587 | $2.43 | $2.148 |
- Product parameter
- Data sheet
Product parameter
Part Number | 09662186500 | Manufacturer | HARTING |
---|---|---|---|
Description | CONN DSUB RCPT 15POS PNL MNT IDC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 15524 pcs | Data sheet | 0966218x500 Drawing |
Category | Connectors, Interconnects | Wire Gauge | - |
Voltage Rating | - | Termination | IDC, Ribbon Cable |
Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel |
Series | - | Packaging | Bulk |
Other Names | 1195-2536 9662186500 |
Operating Temperature | - |
Number of Rows | 2 | Number of Positions | 15 |
Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 9 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
Features | Feed Through | Detailed Description | 15 Position D-Sub Receptacle, Female Sockets Connector |
Current Rating | 2A | Contact Type | Signal |
Contact Material | Copper Alloy | Contact Form | - |
Contact Finish Thickness | - | Contact Finish | - |
Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
Color | - | Backset Spacing | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
