09185266329

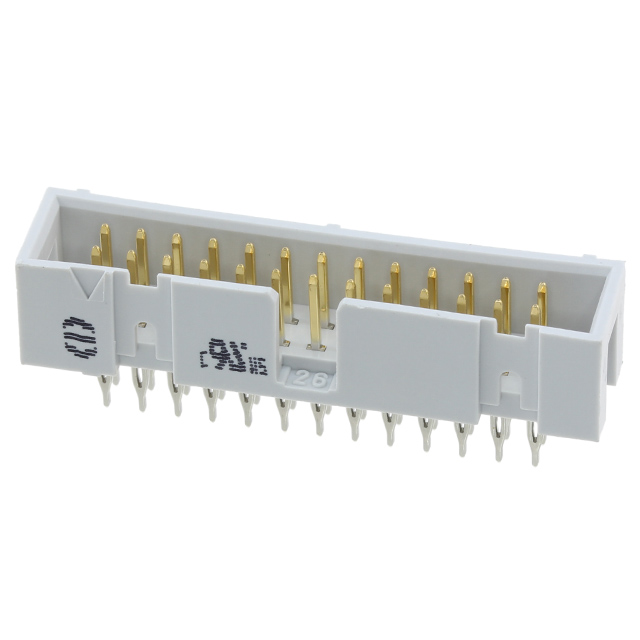

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09185266329 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09185266329 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09185266329 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN HEADER 26POS T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.345 | $1.289 | $1.182 | $1.128 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.074 | $0.94 | $0.913 | $0.779 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09185266329 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN HEADER 26POS T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44575 pcs | Data sheet | Device Connectivity Catalog09185zzz329 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SEK |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 09185266329-ND 1195-4523 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.350" (8.89mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 26 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.217" (5.51mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | - |
| Connector Type | Header | Applications | - |
