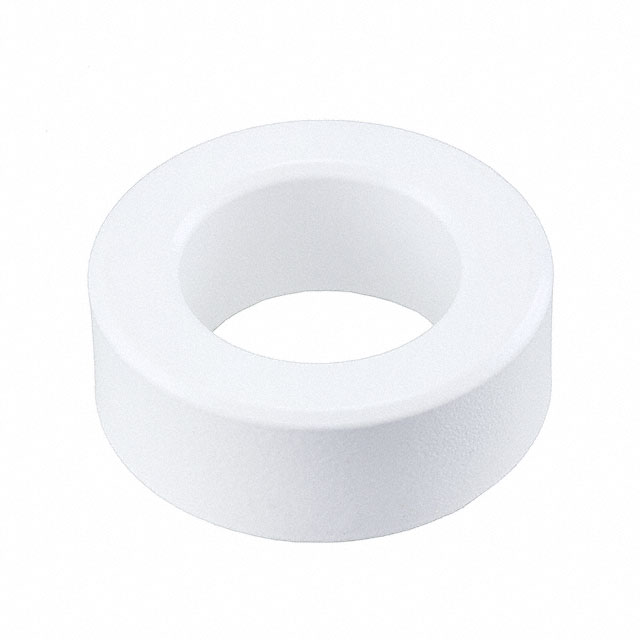

TX55/32/18-3E6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TX55/32/18-3E6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TX55/32/18-3E6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TX55/32/18-3E6 |
|---|---|
| Manufacturer | FERROXCUBE |
| Description | FERRITE CORES ROUND |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.699 | $3.151 | $2.397 | $2.329 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.055 | $1.918 | $1.781 | $1.712 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TX55/32/18-3E6 | Manufacturer | FERROXCUBE |
|---|---|---|---|
| Description | FERRITE CORES ROUND | Lead Free Status / RoHS Status | |
| Quantity Available | 17570 pcs | Data sheet | T(X)55/32/18 Spec |
| Category | Magnetics - Transformer, Inductor Components | Width | - |
| Tolerance | ±30% | Supplier Device Package | TX 55 x 32 x 18 |
| Series | * | Other Names | 1779-1665 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Manufacturer Standard Lead Time | 24 Weeks |
| Length | - | Height | 19.20mm |
| Gap | Ungapped | Finish | Epoxy |
| Effective Permeability (µe) | 9500 | Effective Magnetic Volume (Ve) mm³ | 26580 |
| Effective Length (le) mm | 132 | Effective Area (Ae) mm² | 202 |
| Diameter | 57.50mm | Core Type | Toroid |
| Core Factor (ΣI/A) mm1 | 0.651 |
