125NQ015R

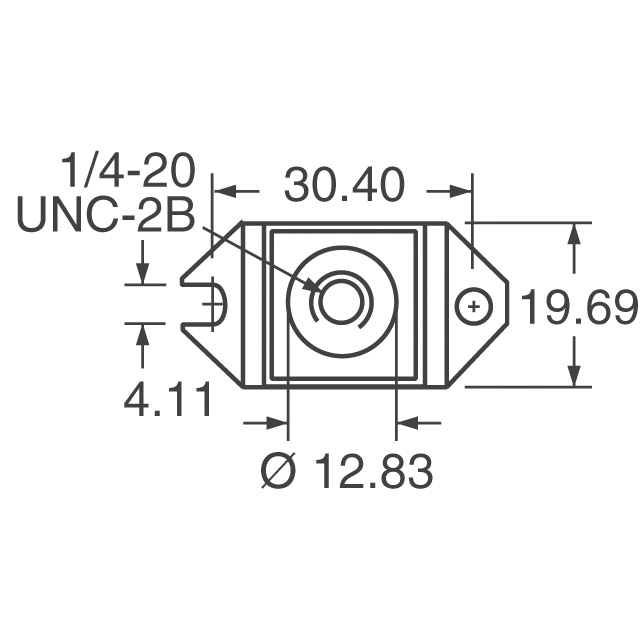

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 125NQ015R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 125NQ015R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 125NQ015R |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | DIODE SCHOTTKY 15V 120A D-67 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 125NQ015R | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | DIODE SCHOTTKY 15V 120A D-67 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4856 pcs | Data sheet | 125NQ015 (R) |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 390mV @ 120A |
| Voltage - DC Reverse (Vr) (Max) | 15V | Supplier Device Package | D-67 |
| Speed | Fast Recovery = 200mA (Io) | Series | - |
| Packaging | Bulk | Package / Case | D-67 HALF-PAK |
| Other Names | *125NQ015R | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Schottky | Detailed Description | Diode Schottky 15V 120A Chassis Mount D-67 |
| Current - Reverse Leakage @ Vr | 40mA @ 15V | Current - Average Rectified (Io) | 120A |
| Capacitance @ Vr, F | 7700pF @ 5V, 1MHz |
