B82747E6353A040
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B82747E6353A040 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B82747E6353A040 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B82747E6353A040 |
|---|---|
| Manufacturer | EPCOS |
| Description | CMC 570UH 35A 3LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 40 pcs | 120 pcs | ||
|---|---|---|---|---|---|
| $4.543 | $4.251 | $3.899 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | B82747E6353A040 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | CMC 570UH 35A 3LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7655 pcs | Data sheet | B82747E6 Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 440/250V | Size / Dimension | 2.559" L x 1.457" W (65.00mm x 37.00mm) |
| Series | B82747 | Ratings | - |
| Packaging | Tray | Package / Case | Vertical, 6 PC Pin |
| Other Names | 495-7001 B82747E6353A 40 B82747E6353A40 |
Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 570µH @ 100kHz |
| Height (Max) | 2.598" (66.00mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 570µH @ 100kHz 3 Line Common Mode Choke Through Hole 35A DCR 1.4 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 1.4 mOhm (Typ) | Current Rating (Max) | 35A |
| Approvals | UR |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
- Related products
- Related news
Related products

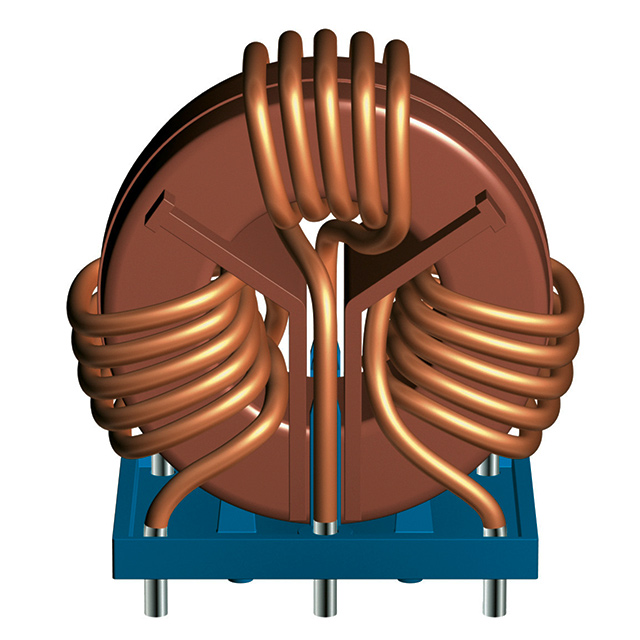

- Part#:
