B82724B2602N001

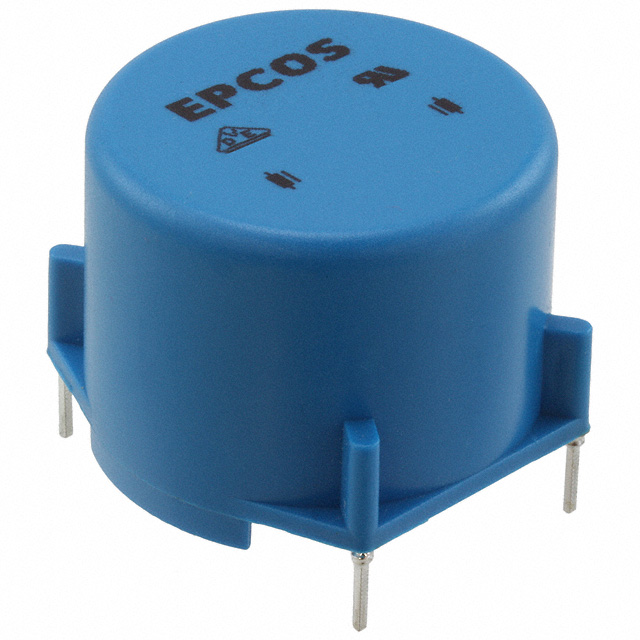

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B82724B2602N001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B82724B2602N001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B82724B2602N001 |
|---|---|
| Manufacturer | EPCOS |
| Description | COMMON MODE CHOKE 1MH 6A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 240 pcs | ||
|---|---|---|---|---|---|
| $2.297 | $2.087 | $1.419 | |||
| 720 pcs | 1200 pcs | 2640 pcs | |||
| $1.294 | $1.21 | $1.169 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | B82724B2602N001 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | COMMON MODE CHOKE 1MH 6A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26518 pcs | Data sheet | B82724B Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 1.323" L x 1.283" W (33.60mm x 32.60mm) |
| Series | B82724 | Ratings | - |
| Packaging | Tray | Package / Case | Horizontal, 4 PC Pin |
| Other Names | 495-5736 B82724B2602N 1 B82724B2602N1 B82724B2602N1-ND |
Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 34 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 1mH @ 100kHz |
| Height (Max) | 0.984" (25.00mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 1mH @ 100kHz 2 Line Common Mode Choke Through Hole 6A DCR 23 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 23 mOhm (Typ) | Current Rating (Max) | 6A |
| Approvals | ENEC, UR, VDE |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
