B65651T0315A048

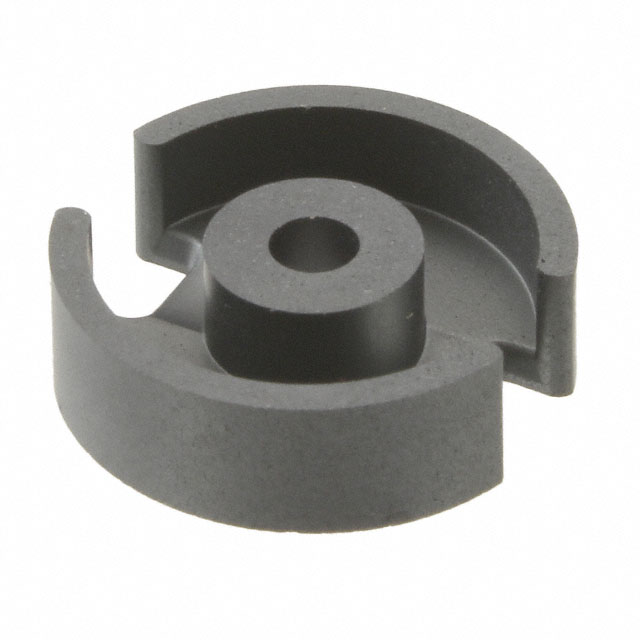

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65651T0315A048 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B65651T0315A048 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B65651T0315A048 |
|---|---|
| Manufacturer | EPCOS |
| Description | FERRITE CORE P 315NH N48 2PCS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $0.593 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | B65651T0315A048 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | FERRITE CORE P 315NH N48 2PCS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60868 pcs | Data sheet | B65651,52,55,59 Series |
| Category | Magnetics - Transformer, Inductor Components | Width | - |
| Tolerance | ±3% | Supplier Device Package | P 18 x 11 |
| Series | B65651 | Other Names | B65651T 315A 48 B65651T315A48 B65651T315A48-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material | N48 |
| Manufacturer Standard Lead Time | 47 Weeks | Length | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Factor (Al) | 315nH |
| Height | 5.30mm | Gap | Gapped |
| Finish | Uncoated | Effective Permeability (µe) | 151 |
| Effective Magnetic Volume (Ve) mm³ | 1114 | Effective Length (le) mm | 25.9 |
| Effective Area (Ae) mm² | 43 | Diameter | 18.40mm |
| Core Type | P (Pot Core) | Core Factor (ΣI/A) mm1 | 0.6 |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
