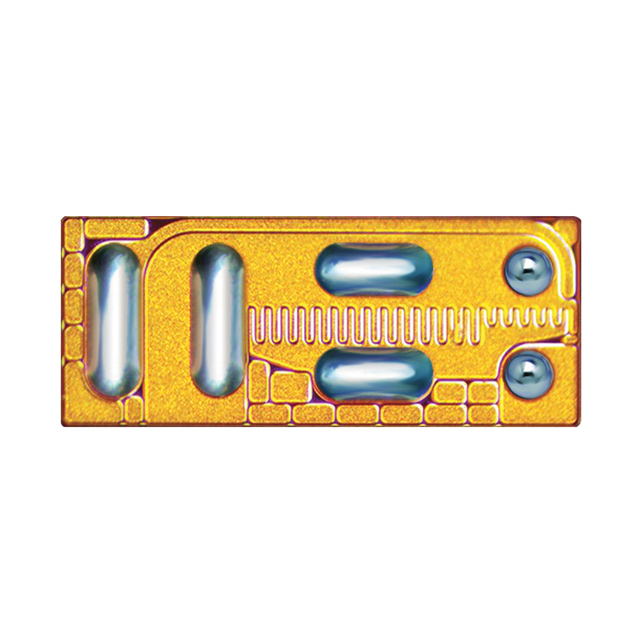

EPC8004
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EPC8004 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EPC8004 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EPC8004 |
|---|---|
| Manufacturer | EPC |
| Description | TRANS GAN 40V 2.7A BUMPED DIE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $2.128 | $1.901 | $1.711 | $1.559 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $1.407 | $1.262 | $1.065 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EPC8004 | Manufacturer | EPC |
|---|---|---|---|
| Description | TRANS GAN 40V 2.7A BUMPED DIE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36026 pcs | Data sheet | eGaN® FET BriefEPC8004 Datasheet |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | +6V, -4V | Technology | GaNFET (Gallium Nitride) |
| Supplier Device Package | Die | Series | eGaN® |
| Rds On (Max) @ Id, Vgs | 110 mOhm @ 500mA, 5V | Power Dissipation (Max) | - |
| Packaging | Cut Tape (CT) | Package / Case | Die |
| Other Names | 917-1072-1 | Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 52pF @ 20V | Gate Charge (Qg) (Max) @ Vgs | 0.45nC @ 5V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 5V | Drain to Source Voltage (Vdss) | 40V |
| Detailed Description | N-Channel 40V 2.7A (Ta) Surface Mount Die | Current - Continuous Drain (Id) @ 25°C | 2.7A (Ta) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
